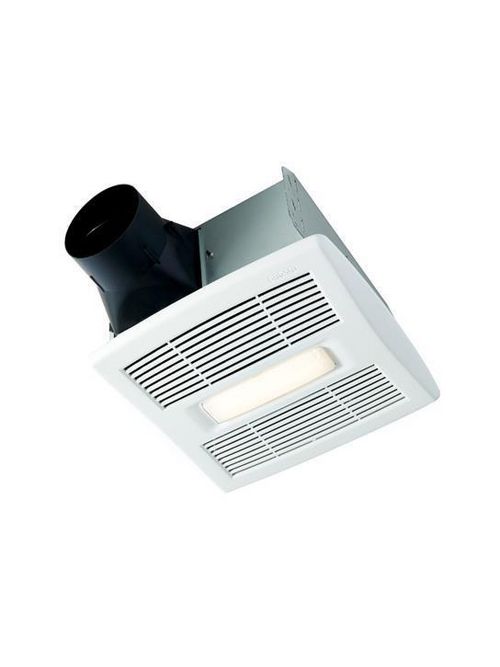

Product image for BRO AE80BL LED LIGHT 80 CFM 15 SONES ENERGY STAR QUALIFIED
Image thumbnail 0
Image thumbnail 1
Email

BRO AE80BL LED LIGHT 80 CFM 15 SONES ENERGY STAR QUALIFIED

Manufacturer: Nutone | Catalog # AE80BL | Echo Electric Part # 112045
$113.00/ea
ea
Log in or register to view your price, purchase history, and more!
3 available

For Pick Up

at Springfield, IL Opens Monday 7:00am CT
60 available

For Delivery

Not in local stock *
Check another branch
Product Spec Sheet Installation / Instruction Manual
This patent-pending series marks a revolution of our mid-range ventilation fans. It gives professionals the flexibility to handle new construction or room-side retrofit installations from one hard-working product line with a full range of operating points. Innovations include foldable mounting ears and new damper and housing technology that improve building airtightness like never before. With fresh grille designs and a full range of operating points, there’s an InVent Series solution for every installation.

Technical Information

Airflow Rate
80 CFM
Amperage
0.5 Amp
Bulb Included
Yes
Duct Size
4 in
Light Type
LED
Voltage
120 Volt
Wattage
26.9 Watt

Manufacturer Information

Brand
Broan-NuTone

General Product Info

12-Digit UPC
026715239573
Product UPC
02671523957

Dimensions

Grille Length
11-3/4 in
Grille Width
12-1/2 in
Housing Height
5-3/4 in
Housing Width
10 in
Warranty Length
3 yr
Features
  • Powerful ventilation reduces humidity to quickly eliminate fogged mirrors and manage moisture, so your vision will always be clear and your surroundings will always be comfortable
  • Retrofit installations can be done entirely from the room-side no attic access required. This means a faster, easier installation, so you can move on to something else
  • With our TrueSeal™ Damper Technology, InVent fans reduce air leakage by up to 50%* compared to competitive models, resulting in better home performance via blower door tests and reducing cold and warm air backdrafts
  • EzDuct™ Connector can be installed room-side with no attic access required, fan housing connection have never been easier
  • UL Listed for use over tubs and showers with a GFCI circuit; so you can capture the steam before it spreads throughout the room by locating your fan exactly where you need it the most
  • Models AE110L, AE80BL, AER110L and AE80BL include an 11 watt, 3000K, integrated LED module
  • Model 791LEDM includes a 12 watt, 3000K, integrated LED module
  • Models A110L, A50L, A70L, A80L, AR80L and AR80LX feature a 100 watt max. incandescent A19 type bulb or energy efficient equivalent bulb with Maximum Overall Length (M.O.L.) of 4.4\" or less (bulb not included)
Versatile Installation
  • FoldAway™ Mounting Ears are precisely positioned for new construction and fold flat for room-side retrofits. Every installation can be handled more efficiently.
EzDuct Connector
  • Connecting to an existing duct can be done room-side with no attic access required, fan housing connection has never been easier.
Airtight Performance
  • With our TrueSeal™ Damper Technology, InVent fans reduce air leakage by up to 50% compared to competitive models, resulting in better home performance via blower door tests.
LED Lighting
  • LED Lighting offers greater energy efficiency and longevity, and adds a unique design detail to this hard-working fan. 11 watt, 800 Lumens integrated LED module lasts up to 25,000 hours.
