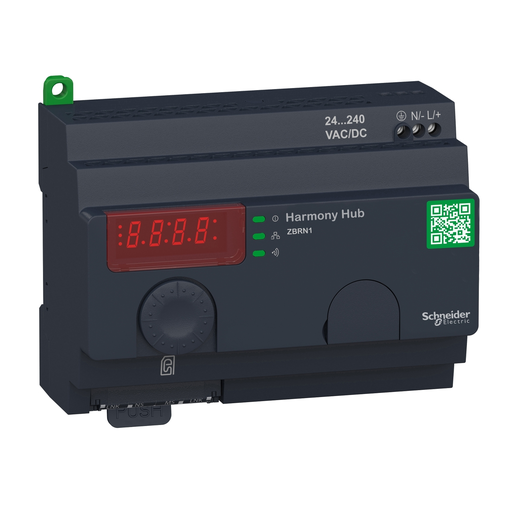

Product image for SQD ZBRN1 Harmony Hub wireless ethe
Email

SQD ZBRN1 Harmony Hub wireless ethe

Manufacturer: Square-D / Schneider | Catalog # ZBRN1 | Echo Electric Part # 116559
$433.41/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This configurable harmony Hub is part of the ranges Harmony XB5R plastic and XB4R metal wireless and batteryless pushbuttons. It provides network connectivity openness by operating as an intermediate equipment between the wireless devices and PLCs (Programmable Logic Controller) or industrial PCs (IT/OT box) that support Modbus/TCP protocols. It is equiped with 7 segment display, jog dial, 8 indicating LEDs (Power On, functions mode, communication status, signal strength) external antenna connector and protective plug. It features 1 slot for communication module ZBRCETH (should be ordered separately). It weighs 270g.

Technical Information

Applications
Wireless Schneider Electric devices ecosystem
Dielectric Strength
1500 V
Indicator
1 LED (GREEN) : POWER ON-1 LED (YELLOW) : COMMUNICATION NETWORK-5 LEDS (RED) : FUNCTION MODE-1 LED (GREEN AND YELLOW) : RECEPTION SIGNAL
Material
Plastic
Net Weight
0.26 kg
Size
2.36 in
Standard
CSA C22.2 No 14,EN 62311,EN/IEC 60950-1,EN/IEC 61131-2,ETSI EN 300 328,ETSI EN 300 440-2,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
1 CONDUCTOR CABLE 0.2-4 MMA - AWG 24...AWG 12 - SOLID - WITHOUT CABLE END IEC 60947-1-2 CONDUCTORS CABLE 0.2-1.5 MMA - AWG 24...AWG 16 - SOLID - WITHOUT CABLE END IEC 60947-1-1 CONDUCTOR CABLE 0.2-0.75 MMA - AWG 24...AWG 14 - FLEXIBLE - WITH CABLE END IEC 60947-1-2 CONDUCTORS CABLE 0.2-2.5 MMA - AWG 24...AWG 18 - FLEXIBLE - WITH CABLE END IEC 60947-1,ETHERNET MODBUS TCP/IP RJ45 MODBUS TCP NETWORK, 10/100 MBIT/S, 2 TWISTED PAIRS
Type
Zigbee green power gateway;Harmony Hub Wireless/Ethernet gateway
Voltage
24...240 Volt AC/DC 50/60 HZ-10...10
Wattage
4 Watt AC/DC

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ZBRN1

General Product Info

12-Digit UPC
606480528487
GTiN
03606480528484
Housing Material
Plastic
Product UPC
78590122209
Weight
0.26 kg

Dimensions

Depth
60 mm
Height
90 mm
Width
122 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
C-tick,CCC,CE,CSA,GOST,UL
Country of Origin
Indonesia
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • ZB4RTA1
  • ZBRCETH
  • ZB4RTA2
  • ZBRA2
  • ZB4RTA3
  • ZB4RTA4
  • ZB4RTA5
  • ZB5RTA1
  • ZB5RTA2
  • ZB5RTA3
  • ZB5RTA331
  • ZB5RTA4
  • ZB5RTA432
  • ZB5RTA5
  • ZB5RTA6
  • ZB5RTC2
