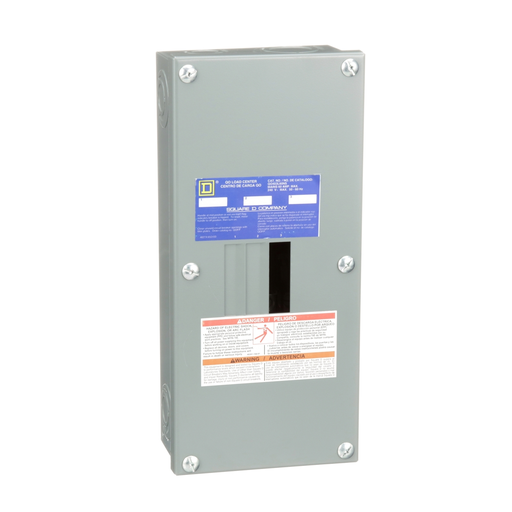

Product image for Square D QO403L60NS Load Center MLO 60A 120/240V 3Ph 3SP NEMA-1
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3

Email

Square D QO403L60NS Load Center MLO 60A 120/240V 3Ph 3SP NEMA-1

Manufacturer: Square-D / Schneider | Catalog # QO403L60NS | Echo Electric Part # 119849

$156.16/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
QO Load Centers offer premium features by allowing QO breakers, ground arc fault interrupters arc fault interrupters and surge arresters to be installed inside QO Load Centers enable the use of a full complement of accessories such as ground bars and surface covers which are included here. Systems can be single or three phase and have indoor and outdoor versions. Indoor enclosures are designed to rotate 180 degrees to accommodate top or bottom service entrance feed which saves expensive service cable. QO Load Centers feature plated copper bus, providing superior performance and durability. This QO Load Center contains a main lug and is rated at 60 A and 3 phase. This system provides 3 spaces in a NEMA 1 enclosure.

Technical Information

Amperage
60 Amp
Applications
DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE.
Cable Size
AWG 10...AWG 6 COPPER
Conductor Size
10-6 AWG
Cover Type
Surface Cover
Current
60 Amp
Enclosure
1
Enclosure Material
Steel
Interrupt Rating
65 kAIC
Line Rated Current
60 A
Material
Tin Plated Aluminium: Busbar
NEMA Size
1
Number of Circuits
3
Number of Phases
3,4 Phase
Number of Spaces
3
Operating Temperature
23 degrees F (-5 degrees C) || 104 degrees F (40 degrees C)
Short Circuit Current
65 kA
Short Circuit Current Ratng
65 kA
Surface Finish
Baked Enamel Gray
Type
Load Center
Voltage
120 Volt

Manufacturer Information

Brand
Square D
Sub Brand
QO

General Product Info

12-Digit UPC
785901051701
Finish
Baked Enamel
GTiN
00785901051701
Product UPC
78590105170

Dimensions

Height
333 mm
Warranty Length
18 mth
Width
149 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
