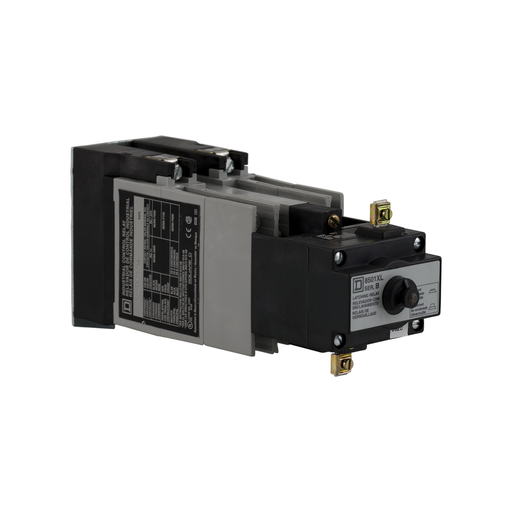

Product image for Square D 8501XO80XLV02 110/120 VAC 10/5 Amp 8-Pole 8NO Panel Mount AC Operated/Mechanically Latched Latching Relay
Email

Square D 8501XO80XLV02 110/120 VAC 10/5 Amp 8-Pole 8NO Panel Mount AC Operated/Mechanically Latched Latching Relay

Manufacturer: Square-D / Schneider | Catalog # 8501XO80XLV02 | Echo Electric Part # 121620
$647.52/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
NEMA Control Relay, Type X, latching, 10A resistive at 600 VAC, 8 normally open contacts, 110/120 VAC 50/60 Hz coil

Technical Information

Amperage
5-10 Amp
Coil Voltage
110 V AC 50 Hz;120 V AC 60 Hz
Contact Configuration
8 NO 8 standard contact cartridges
Contact Rating
10 A AC-5 A DC,600 V AC
Current
10 Amp
Line Rated Current
10 A
Mounting Type
Panel
Number of Poles
8 Pole
Operating Temperature
-40160 degrees F (-4071 degrees C)
Range
8501X
TC Connection
SCREW CLAMP TERMINALS
Type
LATCHING,RELAY
Voltage
600 Volt

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901028529
GTiN
00785901028529
Product UPC
78590102852

Dimensions

Depth
7.74 Inch
Height
3-1/2 Inch
Warranty Length
18 mth
Width
2.23 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA,UL Listed
Country of Origin
Mexico
Compatible Products
  • 8501XA1
  • 8501XC1
  • 8501XC2
  • 8501XLV02
  • 8501XM8
  • 8501XS1
  • 9998X44
