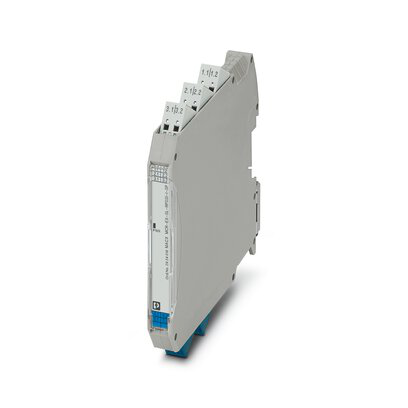

Product image for PHNX 2924016 MACX MCR-EX-SL-RPSSI-I-SP
Email

PHNX 2924016 MACX MCR-EX-SL-RPSSI-I-SP

Manufacturer: Phoenix Blocks | Catalog # 2924016 | Echo Electric Part # 133535
$591.58/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Ex i repeater power supply and input signal conditioner, HART-transparent. Transmits supplied or active 0/4 … 20 mA signals from the Ex area to a load (active or passive) in the safe area. 3-way electrical isolation, SIL 2 in accordance with IEC 61508, with Push-in connection

Technical Information

Strip Length
8 mm

Manufacturer Information

Brand
Phoenix Products

General Product Info

12-Digit UPC
463563380666
Product UPC
46356338066

Dimensions

Depth
113.7 mm
Height
116.8 mm
Width
12.5 mm

Certifications and Compliance

Country of Origin
Germany
Features
  • 0/4 mA ... 20 mA input, intrinsically safe, [Ex ia], powered and not powered
  • Measuring transducer supply voltage > 16 V
  • 0/4 mA ... 20 mA output, active up to 1000 ? load or passive
  • Bidirectional HART signal transmission
  • Error indication according to NAMUR NE 43
  • SIL 2 according to IEC 61508/EN 61508
  • Installation in Ex zone 2 permitted
  • 3-way electrical isolation
  • Power supply possible via DIN rail connector
  • Plug-in connection terminals, push-in connection technology
  • Housing width: 12.5 mm
  • Minimal power dissipation
  • High transmission accuracy
Approvals
  • BV
  • cULus Listed
  • EAC Ex
  • Functional Safety
  • IECEx
  • ATEX
  • KC-s
  • DNV GL
  • UL Listed
  • cUL Listed
