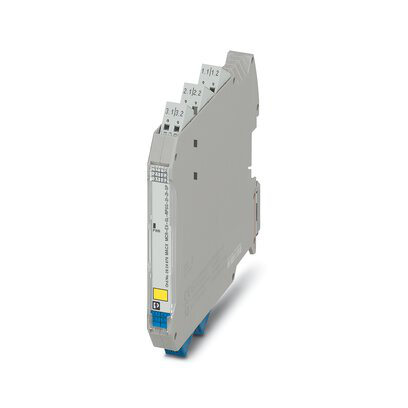

Product image for PHNX 2924676 MACX MCR-EX-SL-RPSS-2I-2I-SP 2-CH AI BARRIER
Image thumbnail 0
Image thumbnail 1
Email

PHNX 2924676 MACX MCR-EX-SL-RPSS-2I-2I-SP 2-CH AI BARRIER

Manufacturer: Phoenix Blocks | Catalog # 2924676 | Echo Electric Part # 133542
$791.27/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Ex i measuring transducer repeater power supply, 2-channel, HART-transparent. Supplies Ex i 2-conductor measuring transducers and transmits the 4…20 mA signal from the Ex area to the safe area. 5-way electrical isolation, Push-in connection, up to SIL 3, PL.

Technical Information

Strip Length
8 mm

Manufacturer Information

Brand
Phoenix Contact

General Product Info

12-Digit UPC
463566654832
Product UPC
46356665483

Dimensions

Depth
113.7 mm
Height
116.8 mm
Width
12.5 mm

Certifications and Compliance

Country of Origin
Germany
Features
  • 2-channel
  • 4 mA ... 20 mA input, intrinsically safe, [Ex ia], powered
  • Output 4 mA ... 20 mA, active
  • HART-compatible
  • Error indication according to NAMUR NE 43
  • Up to SIL 3 according to IEC/EN 61508
  • 5-way electrical isolation
  • Power supply possible via DIN rail connector
  • Installation in Ex zone 2 permitted
  • Plug-in connection terminals, push-in connection technology
  • Housing width: 12.5 mm
  • Minimal power dissipation
  • High transmission accuracy
Approvals
  • cULus Listed
  • Functional Safety
  • IECEx
  • ATEX
  • KC-s
  • UL Listed
  • cUL Listed
