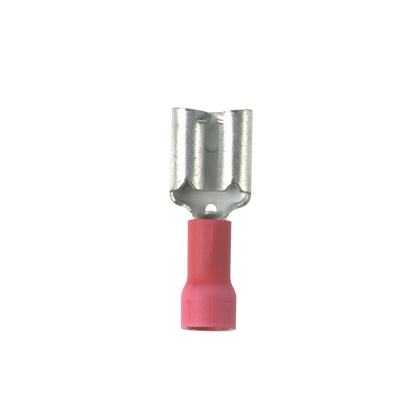

Product image for Panduit DV18-250B-MY Disconnect, Red, Vinyl, 18-22 AWG, 0.25" Tab, PK1000
Email

Panduit DV18-250B-MY Disconnect, Red, Vinyl, 18-22 AWG, 0.25" Tab, PK1000

Manufacturer: Panduit Corp | Catalog # DV18-250B-MY | Echo Electric Part # 137830
$571.36/m (1000 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Buy American Compliant Buy American Compliant Product Spec Sheet
The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in red vinyl housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.81" (20.6 mm) long and 0.29" (7.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in boxes of 1000.

Technical Information

Barrel Type
Butted Seam
Color Coding
Red
Conductor Size
18 AWG
Material
Brass
Max Operating Temperature
105 degrees C
TC Connection
Funnel Entry
Temperature Rating
221 F
Type
Disconnect
Voltage
600 Volt
Wire Size
18 AWG

Packaging

Pkg Qty
1000

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983409204
Color
Red
Finish
Tinned
GTiN
00074983409204
Product UPC
07498340920
UNSPSC
39121409

Dimensions

Height
0.12 Inch
Overall Length
0.81 in
Width
0.29 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
