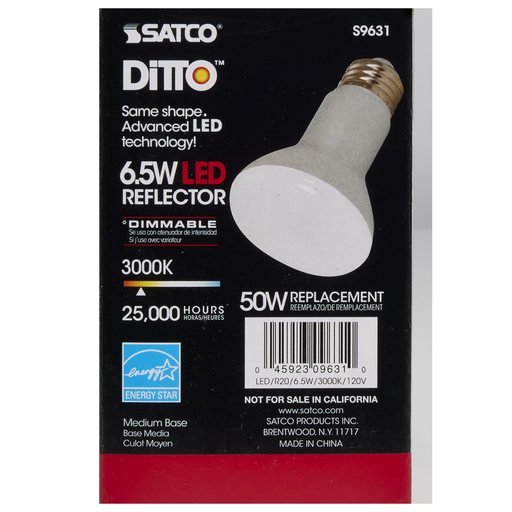

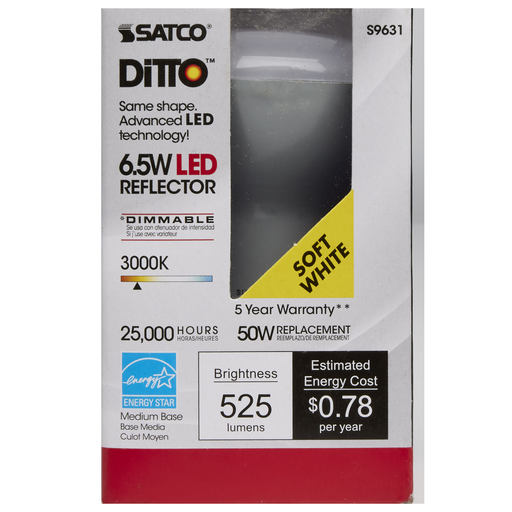

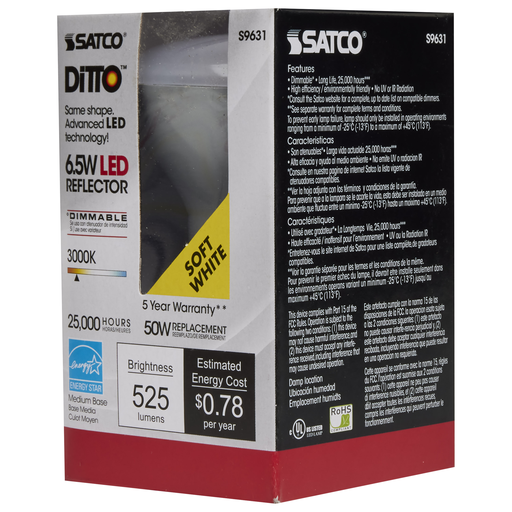

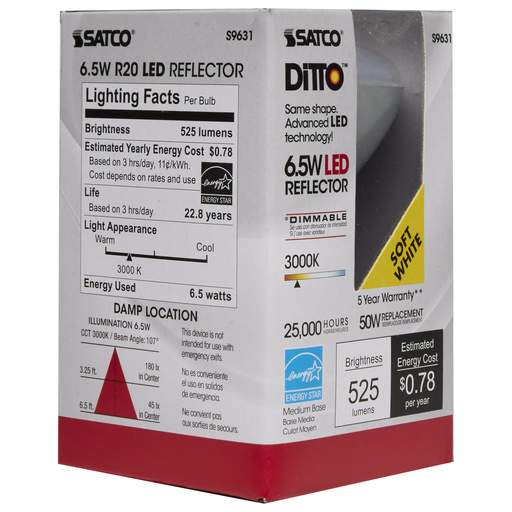

Product image for Satco S9631 6.5 Watt; LED R20; 3000K; 107 deg. Beam Angle; Medium base; 120 Volt; Dimmable
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Satco S9631 6.5 Watt; LED R20; 3000K; 107 deg. Beam Angle; Medium base; 120 Volt; Dimmable

Manufacturer: Satco Products, Incorporated | Catalog # S9631 | Echo Electric Part # 138358
$6.10/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
6 available

For Delivery

Not in local stock *
Check another branch
Product Spec Sheet Safety Data Sheet
6.5W; LED R20; 3000K; 107 deg. beam spread; Medium base; 120V; Dimmable

Technical Information

Amperage
0.054 Amp
Average Rated Life
25000 hr
Base
Medium
Beam Angle
107
Beam Spread
107
Bulb Shape
R20
Color Accuracy
83
Color Rendering Index
83
Color Temperature
3000 K
Correlated Color Temp
3000 K
Dimmable?
Yes
Incandescent Equivalent
45 W
Indoor Outdoor
Indoor
Lens Color
Frost
Lumens
525 Lumen
Operating Temperature
-13 degrees F
Power Factor
0.92
Technology Type
LED
Type
Reflector
Voltage
120 Volt
Wattage
6.5 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco

General Product Info

12-Digit UPC
045923096310
Finish
Frosted
GTiN
00045923096310
Housing Color
Gray
Product UPC
04592309631
Weight
0.09 lb

Dimensions

Diameter
2-1/2 Inch
Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • MOL: 3.94 inches, MOD: 2.50 inches
  • 525 lumens
  • 3000K Warm White Light
  • 5-Year Limited Warranty
  • Damp location rated for indoor use
  • FCC and RoHS compliant
  • Rated for 25,000 hours
