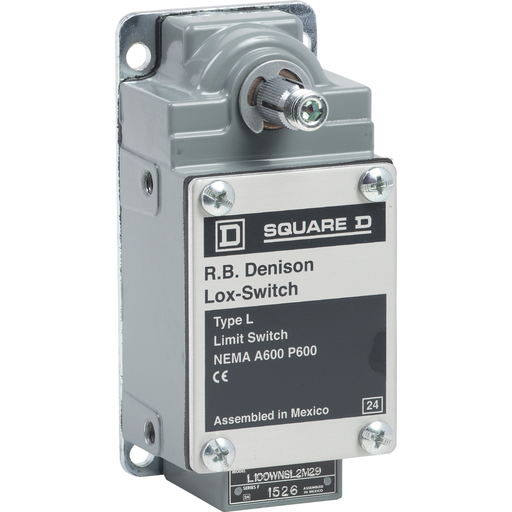

Product image for TES L100WNSL2M29 Limit switch, L100/300, 600 V 10amp type l +options
Email

TES L100WNSL2M29 Limit switch, L100/300, 600 V 10amp type l +options

Manufacturer: TESENSOR | Catalog # L100WNSL2M29 | Echo Electric Part # 145811
$479.89/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Closes 5:00pm CT
3 available

For Delivery

Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
Limit switch, L100/300, 600 V 10amp type l +options

Technical Information

Action
Snap action;From left or right;CW and CCW;Lateral approach
Actuator
SPRING RETURN WITHOUT OPERATING LEVER
Amperage
20 Amp
Applications
Mill switch
Body Material
Cast Aluminium
Body Type
Fixed
Contact Configuration
2 NO
Contact Material
90/10 AgCdO On Copper Backing Stationary Contact,Silver On Steel Backing Moveable Contact
Contact Rating
NEMA A600/P600
Enclosure
NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250
Head Type
Rotary head
Net Weight
1.5 lb
Number of Poles
2 Pole
Operating Temperature
-10-185 Adegrees F
Size
3.41 in
Storage Temperature
-10-185 degrees F
TC Connection
SCREW-CLAMP TERMINALS AWG 22...AWG 12
Type
Limit switch
Voltage
600 Volt

Manufacturer Information

Brand
Telemecanique
Sub Brand
L100;L300

General Product Info

12-Digit UPC
785901161530
GTiN
00785901161530
Product UPC
78590116153
Weight
1.5 lb

Dimensions

Depth
3.41 Inch
Height
4.95-4.95 Inch
Warranty Length
18 mth
Width
2.25 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Mexico
