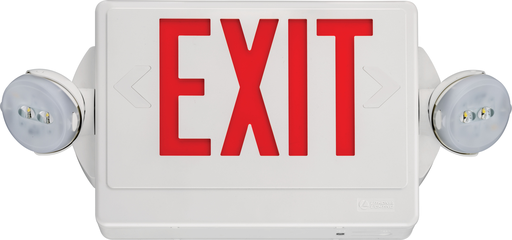

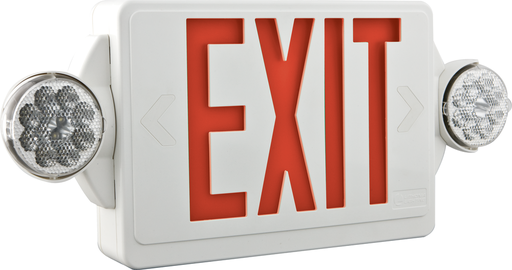

Lithonia LHQM-LED-R-M6 Stencil Face LED Exit Sign, Single Face, 2-Lamp Heads, 120/277V, White Thermoplastic Housing, Red Lettering

Manufacturer: Lithonia Lighting | Catalog # LHQMLEDR | Echo Electric Part # 145854
$178.14/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Safety Data Sheet
The Contractor Select Quantum LHQM emergency light and exit combination unit from Lithonia Lighting with improved aesthetics and performance, is easy to install and maintain. The advanced optical design and electronic technology deliver high-quality light output when it is needed most.

Technical Information

Applications
Education,Government,Healthcare,Hospitality,House Of Worship,Manufacturing,Offices & Banks,Retail,Sports And Recreation
Color Rendering Index
75
Color Temperature
4600 K
Correlated Color Temp
4600 K
Lamp Type
LED
Lamp Wattage
Not Applicable
Lens Color
Clear
Lens Material
Plastic
Light Source
LED
Lumens
160 Lumen
Material
Thermoplastic
Mounting Type
Surface
Number of Lamps
2
Power Source
Hardwired
Standard
NFPA 101,NFPA 70,ULCA Title 20
Type
Emergency Exit Sign
Voltage
120 Volt
Wattage
3 Watt

Manufacturer Information

Brand
Lithonia Lighting
Sub Brand
Contractor Select

General Product Info

12-Digit UPC
745976254438
Color
White
Construction
New Construction,Remodel
Environment
Indoor,Outdoor
Environmental Conditions
Indoor,Outdoor
Finish
Matte
Fixture Type
Emergency Exit Unit (aka Combo)
GTiN
00745976254438
Housing Color
White
Letter Color
Red
Product Type
Emergency Exit Sign
Product UPC
74597625443
Shape
Square
Weight
2.9 lb

Dimensions

Height
8 Inch
Length
19-1/4 Inch
Warranty Length
5 yr
Width
2.25 in

Certifications and Compliance

Country of Origin
China,China
Mounting
  • Surface
Features
  • APPLICATIONS: Suitable for commercial indoor applications requiring both exit sign and unit equipment, Ideal for lower mounting heights and is great for above-the-door applications and other tight fits
  • RATINGS: UL Listed, meets all applicable requirements for UL 924, NFPA 101 (current Life Safety Code), NFPA 70 (NEC) and OSHA, UL Damp Location 50 to 104 degrees F (10-40C) listed
  • VOLTAGE: Functions between 120 or 277 volts (60 Hz) with input wattage of 3 watts
  • HOURS OF LIFE: The typical life of the LED lamp is 10 years using one 1.5 Watt LED per lamp head
  • DESIGN: Engineering-grade thermoplastic housing is impact-resistant, scratch-resistant and corrosion proof, UL94V-0 flame rating, UV-stable resin resists discoloration from natural and man-made light sources
  • BATTERY: Emergency combo provided with test switch, status indicator and rechargeable battery with maintenance-free 9.6V nickel-cadmium battery provides 90 minutes of emergency power
  • WARRANTY: Buy with confidence with a 5-year limited warranty
Application
  • Education
  • Government
  • Healthcare
  • Hospitality
  • House of Worship
  • Offices & Banks
  • Retail
  • Sports and Recreation
Standard
  • NFPA 101
  • NFPA 70
  • ULCA Title 20
  • FCC 47CFR Part 15 Consumer
