PHNX 0700020 TCP 20/DC32V

Manufacturer: Phoenix Blocks | Catalog # 0700020 | Echo Electric Part # 146708
$22.63/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days

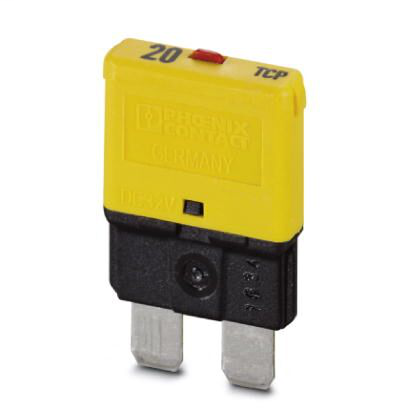

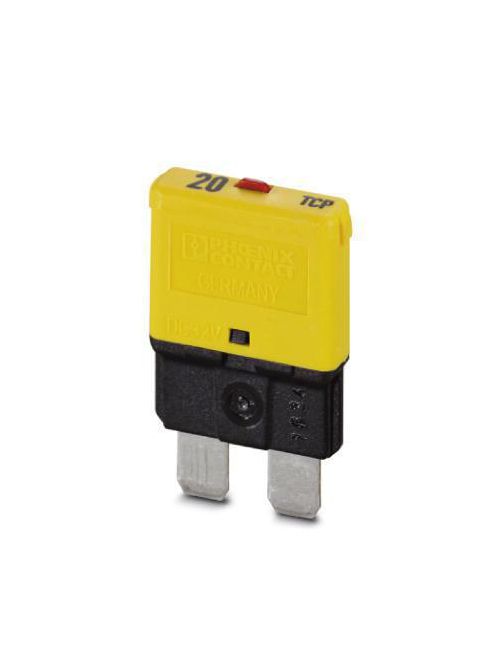

Thermal device circuit breaker, number of positions: 1, nominal current: 20 A, nom. voltage: 32 V, width: 6 mm, fuse type: Slow-blow, fuse type: Automatic device, mounting type: on base element, Color: yellow

Manufacturer Information

Brand
Phoenix Products

General Product Info

12-Digit UPC
463560796620
Product UPC
46356079662

Dimensions

Depth
24 mm
Height
20.3 mm
Width
6 mm
Features
  • Compact design with precise nominal current levels
  • A version with screw or spring-cage connection is used as a basic terminal block
  • In the event of an error, the time-sensitive search for a suitable replacement fuse is eliminated thanks to the reclosure function
  • Fits in all fuse holders designed for flat-type fuse inserts according to ISO 8820?3 (DIN 72581?3)
  • The plug-in thermal miniature circuit-breaker combines the protective mechanism of an automotive flat-type fuse with the advantages of a circuit-breaker
  • The area of application extends to the protection of integrated circuits in all battery and onboard systems with up to 32 V DC
