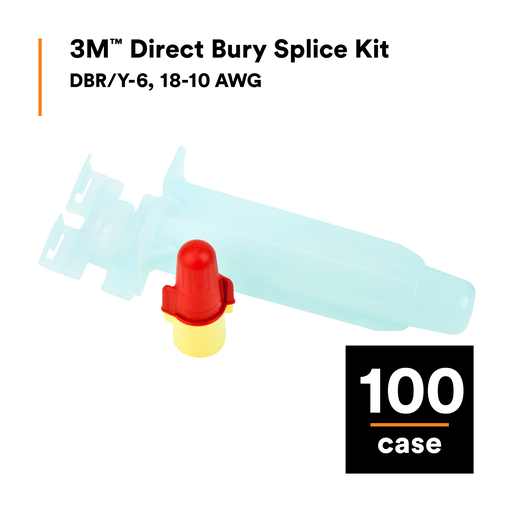

3M DBR/Y-6 BULK 100/Box Red/Yellow Direct Bury Splice Kit

Manufacturer: 3M | Catalog # 7000006235 | Echo Electric Part # 147139
$429.28/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
190 available

For Delivery

Not in local stock *
Check another branch
Product Spec Sheet Safety Data Sheet Product Catalog Page

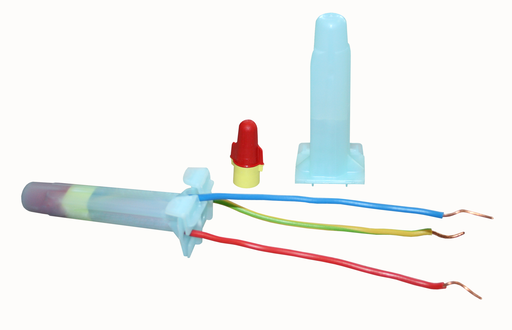

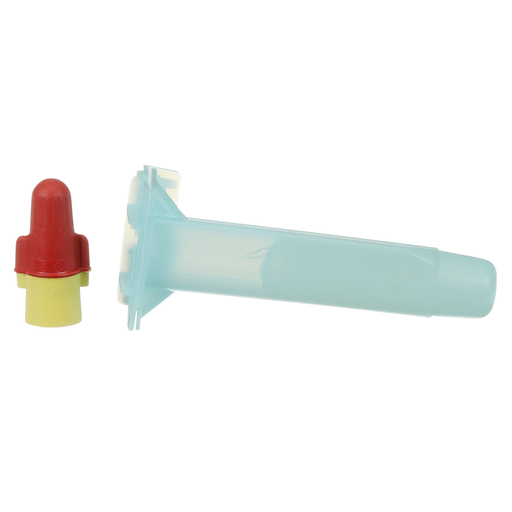

The 3M™ Direct Bury Splice Kit is used to electrically connect two or more pre-stripped copper wires and moisture seal the connection for direct burial. This kit contains a 3M™ Performance Plus Wire Spring Connector R/Y+ and a high impact, UV-resistant 3M™ Polypropylene Tube prefilled with 3M™ Moisture-Resistant Grease. It is UL-listed for direct bury and is rated for 600V.

Technical Information

Applications
Direct Bury
Conductor Size
10 AWG
Connection Type
Wire
Insulation Material
UV Resistant Polypropylene
Max Operating Temperature
105.0 degrees C
Min Operating Temperature
-40.0 degrees C
Operating Temperature
-40 degrees C
Size
18 - 10 AWG
TC Connection
Wire
Temperature Rating
-40 to 221 F
Voltage
600 Volt

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok

General Product Info

12-Digit UPC
051128585740
Color
Red
GTiN
00051128585740
Product Type
Connector
Product UPC
05112858574

Certifications and Compliance

Country of Origin
USA
Features
  • UL Listed for 600 volts in direct bury applications, UL 486D approved
  • Twist-on design for quick connection
  • Use for appliances, fixtures, automotive, marine; commercial, industrial, residential construction
  • Delivers uniform holding power
  • Withstands temperatures up to 221F (105C)
  • Not recommended for long-term continuous submersion
