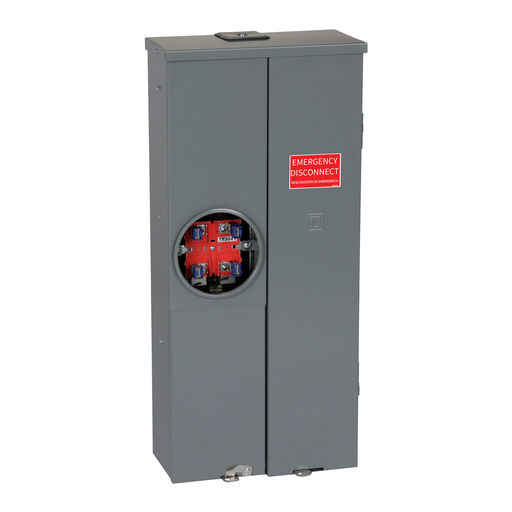

Product image for Square D SC2040M200C Main Breaker Load Center All-In-One Ring Type OH/UG 200A Surface
Image thumbnail 0
Image thumbnail 1
Email

Square D SC2040M200C Main Breaker Load Center All-In-One Ring Type OH/UG 200A Surface

Manufacturer: Square-D / Schneider | Catalog # SC2040M200C | Echo Electric Part # 148389
$1,363.39/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
The Square D® Homeline® Load Centers Surface Mount CSED, SC2040M200C, provides metered service and a main circuit breaker and 16 full branch spaces up to 24 circuits using tandems. All-In-Ones are UL Listed, suitable only for use as service equipment. This device meets EUSERC standarts, Federal Specification W-P-115c as Type 1, Class 2. Can be convertable to semiflush with SC200F flange kit.

Technical Information

Amperage
200 Amp
Cable Entry
OH-UG
Conductor Size
12-1/0 AWG (AL)/14-1/0 AWG (CU)
Line Rated Current
200 A
Mounting Type
Surface
Number of Circuits
40
Number of Phases
1 Phase
Number of Spaces
20
Short Circuit Current
10 kA
Short Circuit Current Ratng
10 kA
Size
14.95 IN,34 IN
Type
ALL-IN-ONE,RINGED
Wire Size
AWG 12...AWG 1/0 aluminium)service ground;AWG 6...300 kcmil aluminium/copper)line side;AWG 14...AWG 1/0 copper)service ground

Manufacturer Information

Brand
Square D
Sub Brand
HOMELINE

General Product Info

12-Digit UPC
785901859093
GTiN
00785901859093
Product UPC
78590185909

Dimensions

Depth
7.12 Inch
Height
34 Inch
Warranty Length
18 mth
Width
14.95 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • A100
  • A200
  • A250
  • ACP
  • HOM120CP
  • HOMFPCP
  • HOM230CP
  • LK100ANCP
  • CMELK4
  • HOM115CP
  • QCGK3
  • 5J
  • HOM240CP
  • HOM250CP
