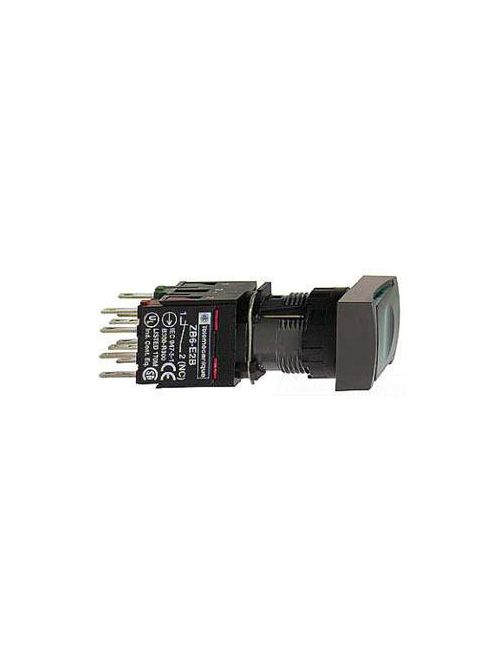

Product image for Square D XB6DW3B1B 16 mm 240 VAC 1.5 Amp 1NO Green Rectangular Flush Return Illuminated Push Button
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Square D XB6DW3B1B 16 mm 240 VAC 1.5 Amp 1NO Green Rectangular Flush Return Illuminated Push Button

Manufacturer: Square-D / Schneider | Catalog # XB6DW3B1B | Echo Electric Part # 150854
$48.01/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Complete illuminated push button, Harmony XB6, green rectang flush, 16mm, spring return 1NO 12...24V

Technical Information

Action
Slow-break
Actuator
GREEN FLUSH, UNMARKED,SPRING RETURN
Amperage
3 Amp 120 V, AC-15, B300 EN/IEC 60947-5-1-1.5 Amp 240 V, AC-15, B300 EN/IEC 60947-5-1-0.1 Amp 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 Amp 125 V, DC-13, R300 EN/IEC 60947-5-1
Bezel Material
Plastic
Contact Configuration
1 NO
Contact Material
Silver Alloy
Contact Rating
AC15 - DC13
Current
15 mA
Enclosure
NEMA 13 UL 50-NEMA 4 UL 50-NEMA 4X UL 50-NEMA 13 CSA C22.2 NO 94-NEMA 4 CSA C22.2 NO 94-NEMA 4X CSA C22.2 NO 94
Indicator
LED,INTEGRAL LED
Light Source
LED
Net Weight
0.022 kg
Operating Force
3.5 N
Operating Temperature
-25-70 Adegrees C
Size
0.63 in
Standard
CSA C22.2 No 14,EN/IEC 60947-1,EN/IEC 60947-5-1,EN/IEC 60947-5-5,JIS C 4520,JIS C 852
Storage Temperature
-40-70 degrees C
TC Connection
FASTON CONNECTORS 2.8 X 0.5 MM
Type
Complete illuminated push-button
Voltage
12...24 Volt AC/DC

Manufacturer Information

Brand
Schneider Electric
Sub Brand
XB6

General Product Info

12-Digit UPC
785901325581
Environmental Conditions
WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)
GTiN
03389110763782
Product UPC
78590132558
Weight
0.022 kg

Dimensions

Height
18 mm
Warranty Length
18 mth
Width
24 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CCC,CSA,GOST,UL
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
