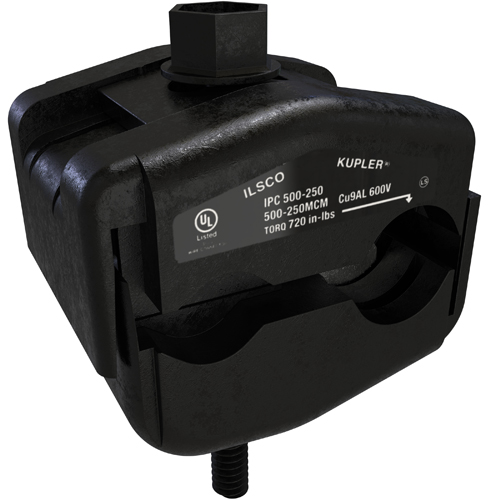

Product image for Ilsco IPC-500-250 KUP-L-Tap Insulation Piercing Copper Connector, Dual Rated, Main Conductor Range 500-250, Tap Range 250-4, Tin Plated, UL, CSA
Email

Ilsco IPC-500-250 KUP-L-Tap Insulation Piercing Copper Connector, Dual Rated, Main Conductor Range 500-250, Tap Range 250-4, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # IPC-500-250 | Echo Electric Part # 151291
$186.44/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
41 available

For Delivery

Not in local stock *
Check another branch
Product Spec Sheet Safety Data Sheet
KUP-L-Tap Insulation Piercing Connector, Mechanical connection, Dual Rated, Copper material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 500 kcmil - 250 kcmil, Copper/Aluminum Secondary Conductor 250 kcmil - 4 Str, 2 conductors, Nylon insulation, Drive Type Main 5/8-11/16 External Hex, rated for 600 V, primary color Black, 1 poles,

Technical Information

Amperage
CU:290;AL:230
Applications
Insulation Piercing Connector
Conductor Material
Aluminum,Copper
Conductor Size
250-500 kcmil
Conductor Type
Copper and Aluminum
Connection Type
Mechanical
Direct Burial?
No
Material
Nylon
Number of Conductors
2
Number of Ports
1
TC Connection
Mechanical
Temperature Rating
90 degrees C
Type
Dual-Rated
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
Kup-L-Tap®

General Product Info

12-Digit UPC
783669532784
Color
Black
Finish
Tin Plated
GTiN
00783669532784
Product UPC
78366953278
Used With
Class B or C Stranded Conductor
Weight
0.671 lb

Dimensions

Height
4.15 Inch
Length
2.423 Inch
Width
2.815 in
