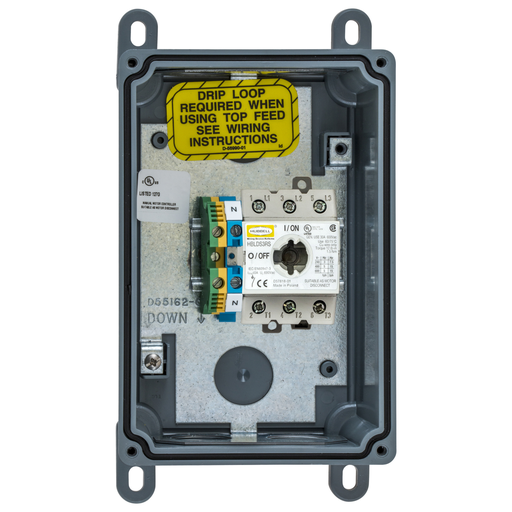

Product image for Hubbell HBLDS3VFD 30 Amp 3-Phase 3-Pole NEMA 4X Non-Metallic Unfused Disconnect Switch Enclosure
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell HBLDS3VFD 30 Amp 3-Phase 3-Pole NEMA 4X Non-Metallic Unfused Disconnect Switch Enclosure

Manufacturer: Hubbell Wiring Device | Catalog # HBLDS3VFD | Echo Electric Part # 153157
$508.54/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
5 available

For Delivery

Not in local stock *
Check another branch
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Controls, Industrial Grade, Variable Frequency Drive, Disconnect Switches, Unfused Switch, Three Pole, 30A 600V AC, Screw Terminals, Gray, NEMA

Technical Information

Action
Snap
Actuator
Lever
Amperage
30 Amp
Applications
Extra Heavy Duty Industrial Application
Connection Type
Screw Terminal
Contact Configuration
Two Position
Contact Rating
30A
Current
30 Amp
Enclosure
Non-Metallic
Load Rating
18000 W
Material
Composite
Mounting Type
Feet
Number of Poles
3 Pole
Operating Cycles
6000
Operating Temperature
-40 degrees C
Size
Standard Sized
Style
Heavy Duty
TC Connection
Terminal Screws
Temperature Rating
-67 degrees C Maximum Continuous, -40 degrees C Minimum Continuous without Impact
Type
Standard, 2 Position, Lever, Non-Fused, Snap
Voltage
600 VAC
Wattage
18 kW

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Circuit-Lock®

General Product Info

12-Digit UPC
783585242439
Environmental Conditions
NEMA 4X
GTiN
00783585242439
Housing Material
Composite
Product Series
Non-Fused
Product UPC
78358524243
Shape
Square Top

Dimensions

Height
4.12 Inch
Length
8-1/2 Inch
Width
5.500 in

Certifications and Compliance

Country of Origin
Poland
Features
  • Formed in nonporous 304 stainless steel
  • IP69k and Type 4X,12K water ingress protection
  • Certified by NSF for hygiene in food processing applications
  • Highly visible red handle which meets OSHA Lockout/Tagout capabilities
  • Accepts up to 2 Auxiliary contacts
