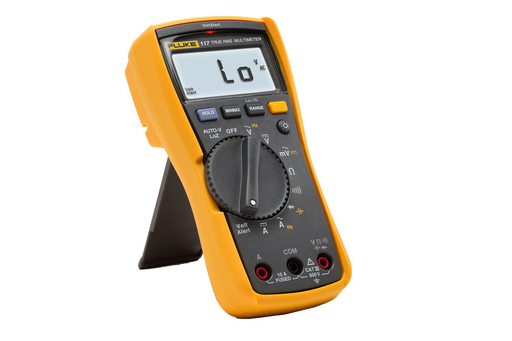

Fluke FLUKE-117 600 VAC/VDC Electrical Multimeter

Manufacturer: Fluke | Catalog # FLUKE-117 | Echo Electric Part # 154272
$326.95/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
5 available

For Delivery

Not in local stock *
Check another branch
Product Spec Sheet
Fluke 117 Digital Multimeter: The choice for commercial applications. Designed by electricians. Engineered by Fluke. The compact Fluke 117 true RMS digital multimeter is optimized to help you keep commercial buildings, hospitals and schools running right. The advanced features of the Fluke 117 help you get the job done, quickly and safely. Integrated non-contact voltage detection helps you identify energized circuits. The AutoV/LoZ function prevents false readings caused by ghost voltage. The Fluke 117 delivers true-rms ac voltage and current readings with 6000-count resolution. It provides Min/Max/Average readings and measures frequency and capacitance. The battery door is easy to access, so you and your Fluke 117 can stay on the job. Fluke 117 multimeters are independently tested for safe use in CAT III 600V environments. And check out other members of the Fluke 110 family: Fluke 113 Utility Multimeter, the Fluke 114 Electrical Multimeter, the Fluke 115 Multimeter and the Fluke 116 HVAC Multimeter with Temperature and Microamps.

Technical Information

Accuracy
0.5 % + 2 V
Applications
Compact true-rms meter for commercial applications
Battery Type
9V Alkaline,NEDA 1604A
Display Type
Digital
Enclosure
Hard plastic
Operating Temperature
-10 To 50 degrees C
Resistance
0.1 O to 40 MO Ohm
Storage Temperature
-40 To 60 degrees C
Temperature Rating
-10 to 50 C
Type
Digital Multimeter
Voltage
600 Volt

Manufacturer Information

Brand
Fluke Corporation

General Product Info

12-Digit UPC
095969324205
GTiN
00095969324205
Product UPC
09596932420
Weight
550 g

Dimensions

Warranty Length
3 yr
Key Features
  • Non-contact voltage detection
  • AutoVolt automatic AC/DC voltage selection
  • Prevent false readings caused by ghost voltage with selectable low-impedance mode
Product Overview
  • The Fluke 117 Electricians Multimeter includes integrated non-contact voltage detection and Auto Volts and LoZ functions to help get the job done faster and prevent false readings caused by ghost voltage. It is a compact true-rms meter for demanding applications like commercial buildings, hospitals, and schools.
  • The Fluke 117 provides Min/Max/Average readings and measures frequency and capacitance. Plus, its easy-to-use interface can save you time and enable you to move from job to job more quickly.
Other Useful Features
  • Features true-rms capabilities for accurate measurements on non-linear loads
  • Accurate, easy-to-use multimeter with integrated VoltAlert™ technology for fast, go/no go non-contact voltage detection
  • Features AutoVolt automatic AC/DC voltage selection
  • Provides low input impedance to help prevent false readings due to ghost voltage
  • Presents a large white LED backlight for working in poorly lit areas
  • Measures 10 A (20 A overload for 30-seconds)
  • Measures resistance, continuity, frequency, and capacitance
  • Provides Min/Max/Average to record signal fluctuations
  • Comes with an holster with probe holders for easy storage
  • Fits into optional ToolPak™ magnetic hanger for hands-free operation
  • CAT III 600 V safety rated
  • A large white LED backlight to improve measurement visibility in poorly lit areas
Includes
  • 4 mm silicone test lead set
  • Holster
  • User manual
Additional Features
  • 1. All AC voltage ranges except Auto-V/LoZ are specified from 1% to 100% of range. Auto-V/LoZ is specified from 0.0 V.2. Temperature uncertainty (accuracy) does not include the error of the thermocouple probe.2. Frequency is AC coupled, 5 Hz to 50 kHz for AC voltage. Frequency is DC coupled, 45 Hz to 5 kHz for AC current.2. Temperature Range/Resolution: -40°F to 752°F / 0.2°F.
