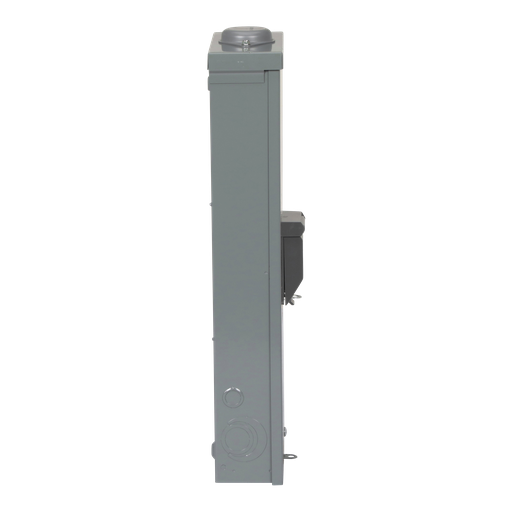

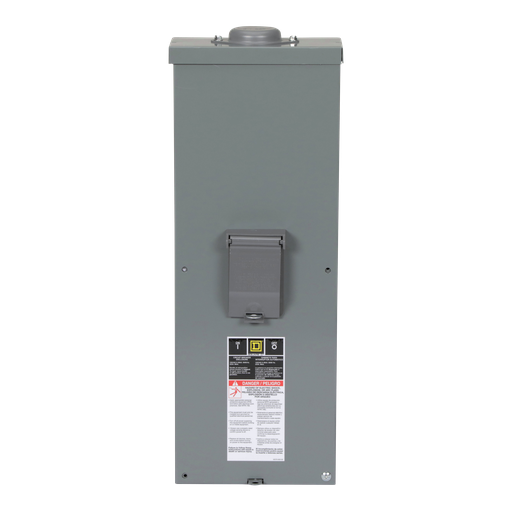

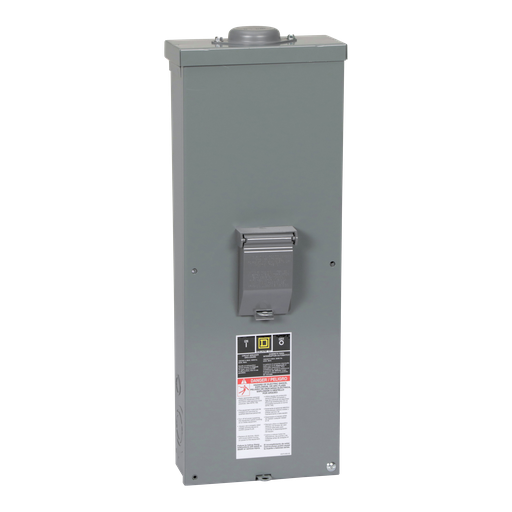

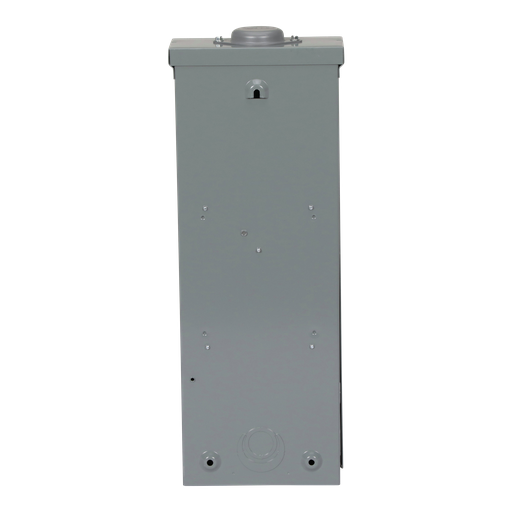

Product image for Square D QOM2E2200NRB 120/240 Volt 200 Amp 2-Pole Bolt On Outdoor Enclosed Circuit Breaker
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Square D QOM2E2200NRB 120/240 Volt 200 Amp 2-Pole Bolt On Outdoor Enclosed Circuit Breaker

Manufacturer: Square-D / Schneider | Catalog # QOM2E2200NRB | Echo Electric Part # 156391
$479.14/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
12 available

For Delivery

Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO main breaker is rated at 200A at 120/240VAC. This unit provides 22kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches.

Technical Information

Amperage
200 Amp
Applications
OUTDOOR
Conductor Size
4 AWG-300 kcmil
Current
200 Amp
Enclosure
NEMA 3R
Interrupt Rating
22 kAIC
Line Rated Current
200 A
Mounting Type
Bolt-On
Net Weight
7.371 kg
Number of Phases
1 Phase
Number of Poles
2 Pole
Operating Temperature
40 Adegrees C
Range
QO
Short Circuit Current
22 kA
TC Connection
AWG 4...300 KCMIL ALUMINIUM/COPPER,LUGS
Trip Range
200 A
Type
CIRCUIT BREAKER
Voltage
120/240 Volt
Wire Size
AWG 4...300 kcmil aluminium/copper

Manufacturer Information

Brand
Square D
Sub Brand
QOM2

General Product Info

12-Digit UPC
785901375302
GTiN
00785901375302
Product UPC
78590137530

Dimensions

Height
624 mm
Warranty Length
18 mth
Width
220 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL
Country of Origin
Mexico
