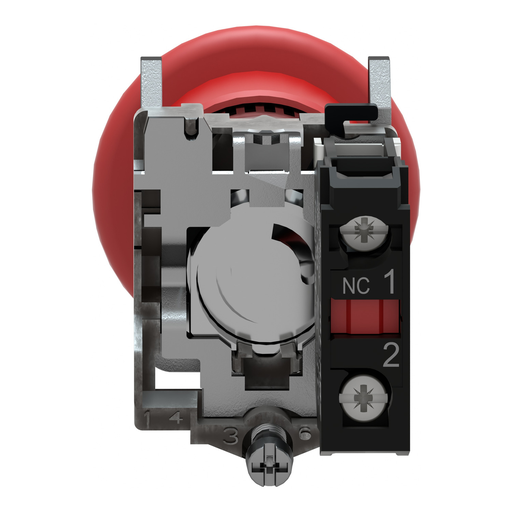

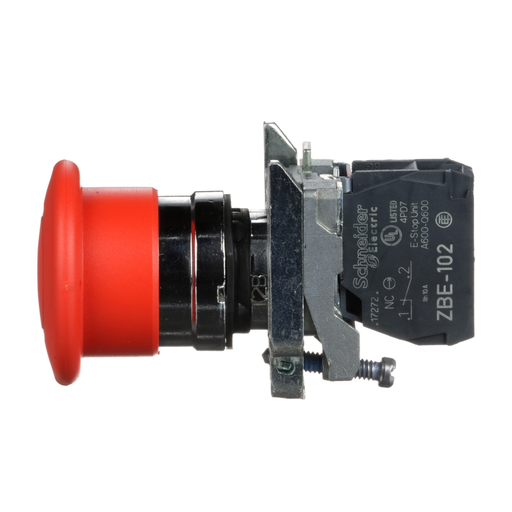

Product image for Square D XB4BT842 22 mm 600 VAC 1.2 Amp 1NC Red Round Trigger Action Push-Pull Non-Illuminated Push Button
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Square D XB4BT842 22 mm 600 VAC 1.2 Amp 1NC Red Round Trigger Action Push-Pull Non-Illuminated Push Button

Manufacturer: Square-D / Schneider | Catalog # XB4BT842 | Echo Electric Part # 156546
$105.39/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1
This Harmony XB4 emergency stop / shutdown 40mm mushroom head modular red push button operates with a latched push-pull mechanism. It has a metal bezel. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off), is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.

Technical Information

Amperage
3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Applications
XB4
Bezel Material
Chromium Plated Metal
Contact Configuration
1 NC
Contact Material
Silver Alloy
Contact Rating
Slow-break
Head Type
Standard
Net Weight
0.125 kg
Operating Temperature
-40-70 Adegrees C
Size
3.23 in
Standard
CSA C22.2 No 14,IEC 60204-1,IEC 60364-5-53,IEC 60947-1,IEC 60947-5-1,IEC 60947-5-4,IEC 60947-5-5,ISO 13850,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
Type
Emergency stop push-button;Emergency switching off push-button

Manufacturer Information

Brand
Schneider Electric
Sub Brand
XB4

General Product Info

12-Digit UPC
606480623717
Color
Red
Environmental Conditions
NEMA 13-NEMA 4X
Finish
Chromium
GTiN
03606480623714
Product UPC
78590197884
Shape
Round
Weight
0.125 kg

Dimensions

Depth
82 mm
Height
47 mm
Width
40 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
BV,CSA,DNV,GL,LROS (Lloyds Register Of Shipping),UL Listed
Country of Origin
Czechia
Prop 65
  • WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • ZBZ1605
  • ZBY9330T
  • ZBY9140T
Cross Sell Products
  • XAPK1501
Spare Part Products
  • ZB4BZ102
  • ZB4BT84
