Panduit FSC2MCXAQ OptiCam® SC Simplex C

Manufacturer: Panduit Corp | Catalog # FSC2MCXAQ | Echo Electric Part # 158254
$28.98/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Buy American Compliant Buy American Compliant Product Spec Sheet

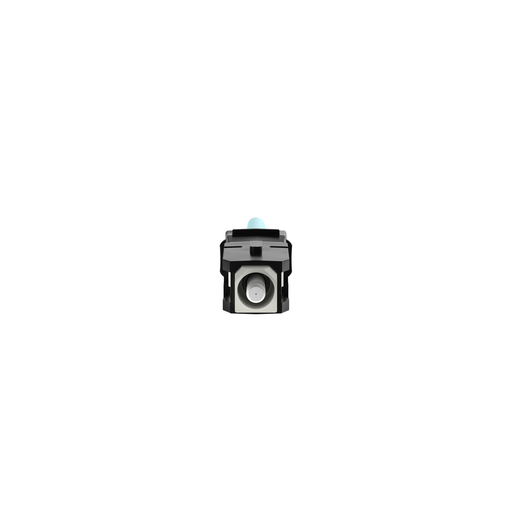

The OptiCam® SC Fiber Optic Connector is a multimode 50/125?m OM3/OM4/OM5 simplex fiber connector, intended for 900-micron tight-buffered fiber installation. Field termination can be done in about two minutes using the OptiCam 2 Termination Tool. The pre-polished fiber endface eliminates time-consuming field polishing, reducing installation costs. The SC connector has a natural-colored body with an aqua-colored backbone, outer housing, and 900?m boot.

Technical Information

Applications
For Maintenance or Emergency Restoration of Fiber Networks and Retrofit/Initial Install in Both Behind-The Wall (BTW) and in the Permanent Side of Panelized Interconnect and Cross-Connect
Body Type
Simplex
Boot Color
Aqua
Connection Type
SET SCREW
Connector Type
Pre-Polished SC2
Fiber Type
OM3/OM4 50/125 m Multimode, 900 m
Material
Zirconia Ceramic
Max Operating Temperature
140 degrees F
Min Operating Temperature
0 degrees C
Temperature Rating
32 - 140 degrees F
Type
Simplex, Tight-Buffered

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
OptiCam®

General Product Info

12-Digit UPC
613056256361
Color
Aqua
GTiN
00613056256361
Product UPC
61305625636
Used With
OCTT2 OptiCam Fiber Termination Tool

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Costa Rica
Standards and Certifications
  • Standards Met: RoHS Compliant; TIA/EIA-604 FOCIS-3 compliant; exceeds TIA/EIA-568-D.3 requirements
