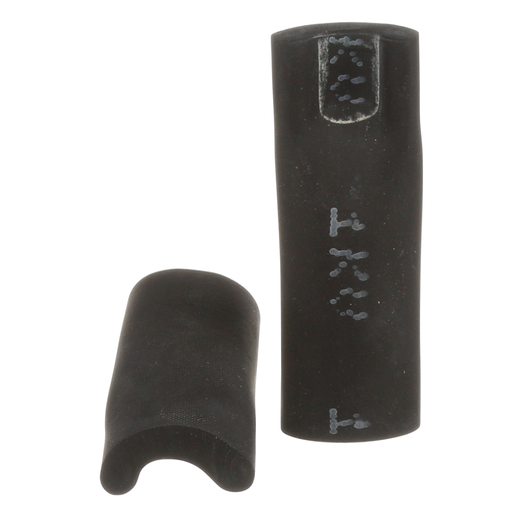

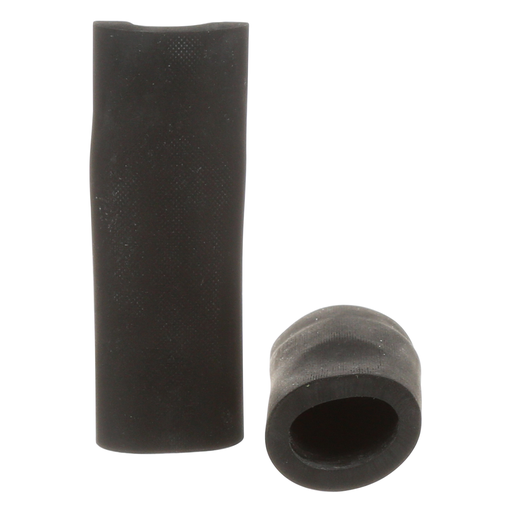

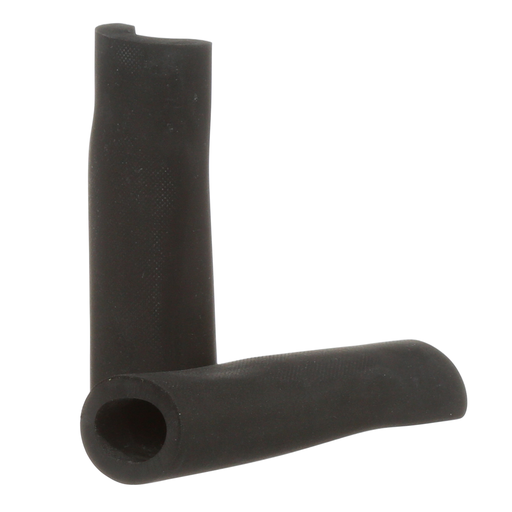

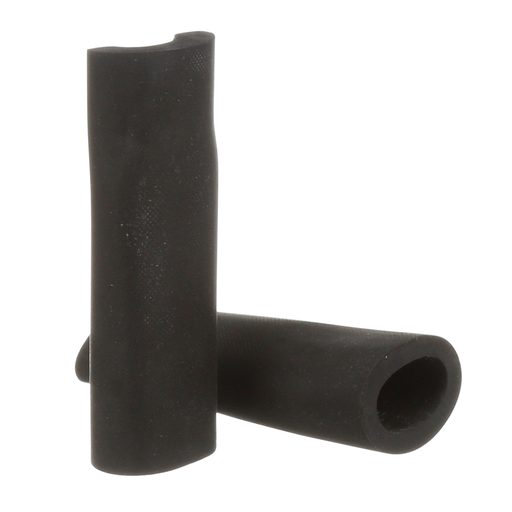

Product image for 3M 5301 Motor Lead Pigtail Splice Kit
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

3M 5301 Motor Lead Pigtail Splice Kit

Manufacturer: 3M | Catalog # 7000005805 | Echo Electric Part # 158535
$14,093.99/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Safety Data Sheet Product Catalog Page
The 3M™ Motor Lead Pigtail Splice Kit makes three splices. Lugs are not included in kits. Feeder of 2-1/0 AWG (35-50 sq mm), motor lead 4-1/0 AWG (25-50 sq mm).

Technical Information

Applications
motor lead 12-14 AWG
Cable Size
10-4
Conductor Size
10-4 AWG/12-4 AWG
Connection Type
Pigtail
Material
Rubber
Splice Type
Pigtail Only
Type
Pigtail
Voltage
1 kV

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007122630
GTiN
00054007122630
Product UPC
05400712263
Used With
Copper Compression, 1-Hole Lugs

Certifications and Compliance

Country of Origin
USA
Features
  • Splices motor lead cables to incoming feeder cables
  • Designed to use with copper compression, 1-hole lugs
  • Slip-on lug cover is made of durable EPDM rubber
  • For pigtail (stub) connections at 1000V or less
  • Includes 3 each of pigtail lug covers, mastic sealing strips, and tubes of silicone grease, plus an instruction sheet
  • CSA Certified and RoHS 2011/65/EU Compliant
