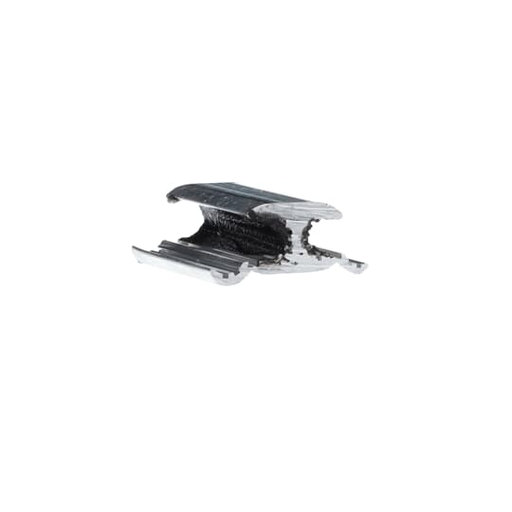

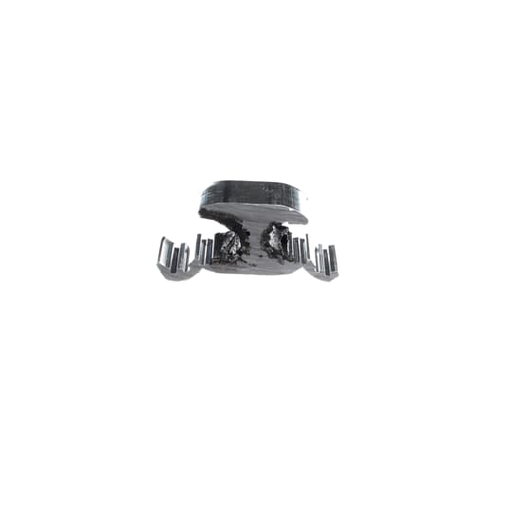

Blackburn WR189 Compression Connector

Manufacturer: Thomas & Betts Co | Catalog # WR189 | Echo Electric Part # 158745
$3.13/ea
ea
Order in multiples of 250 (pack qty)
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
2 available

For Delivery

Not in local stock *
Check another branch
Product Spec Sheet Safety Data Sheet Product Catalog Page
Aluminum H-Tap Connector, Wide Range, Industry Standard Size Code 2, Conductor Range Main ASCR 1/0, #1, #2, Stranded 2/0, 1/0, #1, #2, Solid 3/0, 2/0, 1/0, #1, #2 TAP ASCR #2, #4, #6, Stranded #1, #2, #3, #4, #6, Solid #2, #4, #6, Die O

Technical Information

Applications
For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors.
Material
Aluminum
Number of Conductors
2
Size
1-11/16 in
Standard
ANSI C119.4,RUS Accepted
TC Connection
Compression
Temperature Rating
90 degrees C
Type
Wide-Range, Parallel, Short Sleeve
Wire Size
Main: 1/0-3 ACSR or 2/0-2 STR or 3/0-1 SOL AWG ; Tap: 2-6 ACSR or 1-6 STR or 1/0-6 SOL AWG

Manufacturer Information

Brand
ABB
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786103027
Environmental Conditions
All Seasons
Finish
Tin Plated
GTiN
05415022349283
Product UPC
78378610302
Used With
Round, Solid and Stranded Conductors, Combinations of Aluminum to Copper, and Aluminum to Aluminum Conductors

Dimensions

Length
1-11/16 Inch
Features
  • Made of 1350 Aluminum Alloy for high strength and high conductivity
  • Field-proven ribbed design enables excellent connector/conductor contact without distorting the conductor's shape
  • Standard Compression tools and dies install all sizes - no special tools needed
  • Fold-in tabs provide tab interlock as tool closes
  • Prefilled with oxide inhibitor held captive in the rib/connection area.
Applications
  • For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors.
