Blackburn WR199 Compression Connector

Manufacturer: Thomas & Betts Co | Catalog # WR199 | Echo Electric Part # 158755
$9.95/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Safety Data Sheet Product Catalog Page

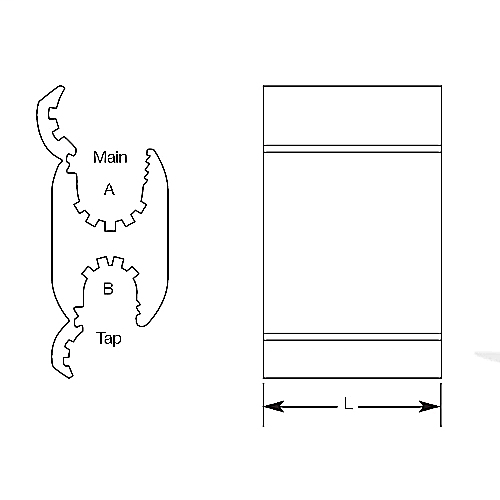

Aluminum Wide Range H-Type Compression Connector Main: 1/0-3 ACSR, 1/0-2 Str., 1 Sol., Tap: 2-4 ACSR, 1-4 Str., 1-2 Sol., Die: 0

Technical Information

Applications
For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors.
Material
Aluminum
Number of Conductors
2
Size
Length 1-3/4 inch
TC Connection
Compression
Temperature Rating
90 degrees C
Type
Wide-Range, Parallel, Short Sleeve
Wire Size
Main: 1/0-3 ACSR or; 1/0-2 STR or 1 SOL AWG ; Tap: 2-4 ACSR or 1-4 STR or 1-2 SOL AWG

Manufacturer Information

Brand
ABB
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786100033
Finish
Tin Plated
GTiN
00783786100033
Product UPC
78378610003
Used With
Round, Solid and Stranded Conductors, Combinations of Aluminum to Copper, and Aluminum to Aluminum Conductors

Dimensions

Length
1-3/4 Inch
Features
  • Enables excellent connector contact without distorting the conductor's shape.
  • Fold-in tabs provide positive tab interlock as tool closes.
  • Made of 1350 Aluminum alloy to provide high strength and conductivity. Prefilled with oxide inhibitor held captive in the rib/connection area.
  • RUS accepted and complies with ANSI C119.4
