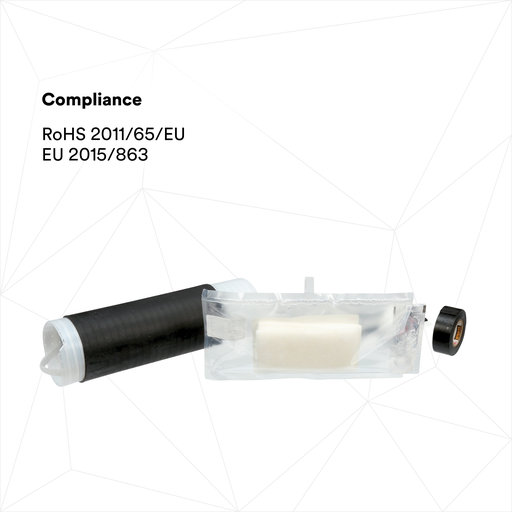

3M 5322 Motor Lead 3 Splices/Kit Splicing Kit

Manufacturer: 3M | Catalog # 7000006042 | Echo Electric Part # 161486
$58,801.23/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Safety Data Sheet Product Catalog Page

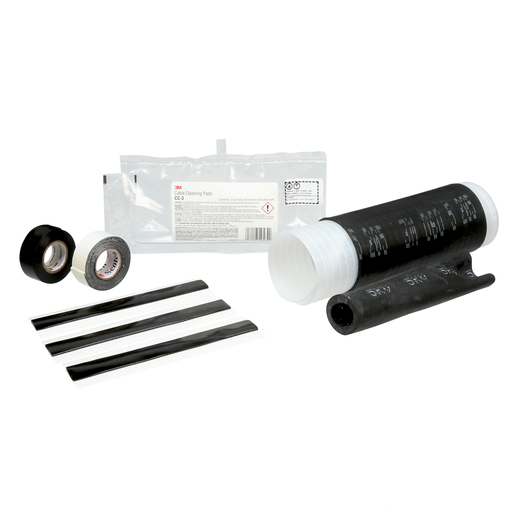

The 3M™ Motor Lead Pigtail Splice Kit makes three splices. Lugs are not included in kits. Feeder of 8-4 AWG (10-16 sq mm), motor lead 10-4 AWG (6-16 sq mm).

Technical Information

Applications
For Splicing Polyethylene/Cross Linked Cable, Ethylene Propylene Rubber Cable, Copper Conductors
Conductor Size
2-1/0 AWG Feeder, 4-1/0 AWG Motor Lead
Connection Type
Pigtail
Material
EPDM
Operating Temperature
90degrees C
Splice Type
Pigtail Only
Temperature Rating
90 degrees C
Type
Motor Lead Pigtail Splice
Voltage
8 kV

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007122722
Color
Black
GTiN
00054007122722
Product UPC
05400712272

Dimensions

Length
8 - 9 Inch

Certifications and Compliance

Country of Origin
USA
Features
  • SPLICE MOTOR LEADS: Used for splicing motor lead cables to incoming feeder cables
  • ACCOMMODATES PIGTAIL (STUB) CONNECTIONS: 5/8kV shielded and non-shielded feeder cables sized 8AWG to 500kcmil
  • EPDM RUBBER: Slip-on splice cover is made of durable EPDM rubber

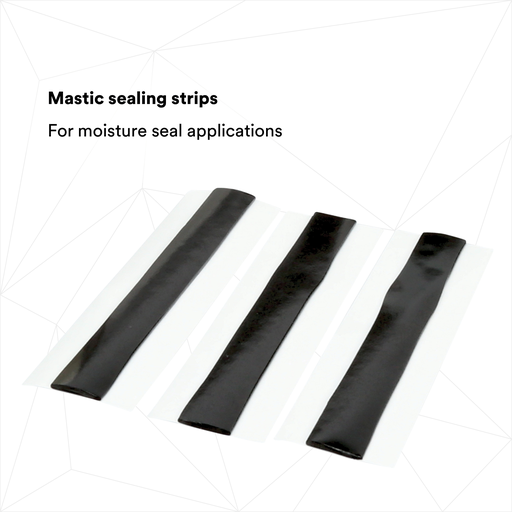

  • MASTIC SEALING STRIPS: For moisture seal applications

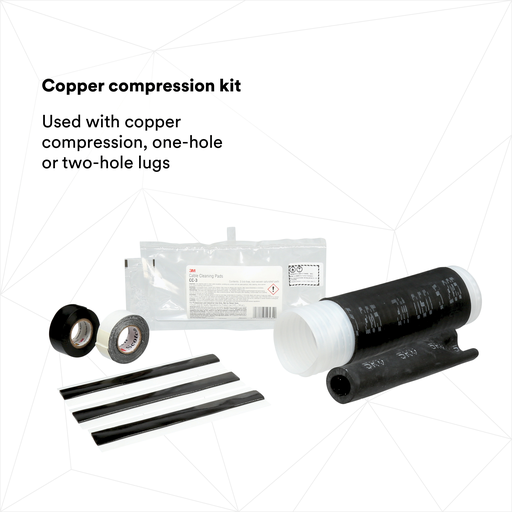

  • COPPER COMPRESSION KIT: Used with copper compression, one-hole or two-hole lugs

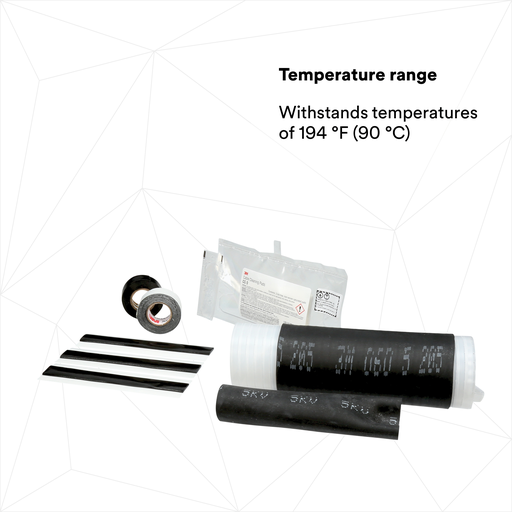

  • TEMPERATURE RANGE: Rated operating temperature of 90 °C (194 °F) and an emergency overload rating of 130 °C (266 °F).
