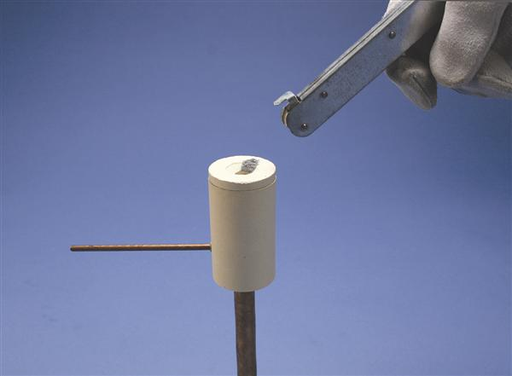

Product image for Erico / Cadweld GR1181L ONE-SHOT Exothermic Weld Mold, Cable to 3/4" Ground Rod, Traditional, #6, #4 Stranded, #4, #3 Solid
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Erico / Cadweld GR1181L ONE-SHOT Exothermic Weld Mold, Cable to 3/4" Ground Rod, Traditional, #6, #4 Stranded, #4, #3 Solid

Manufacturer: Erico, Inc | Catalog # GR1181L | Echo Electric Part # 161787
$28.85/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Safety Data Sheet Product Catalog Page
nVent ERICO Cadweld One Shot, Cable to Ground Rod, Traditional, GR (ONE SHOT), 3/4" dia, #4, #3 Connection, Solid

Technical Information

Applications
Formed 14-gauge steel. Continuously welded seams. Larger sizes include door and body stiffeners. Welded brackets provide for enclosure mounting. Formed lip on door and enclosure exclude flowing liquids and contaminants. Cutouts and holes are provided to suit the flange handle operating mechanism. Continuously hinged doors may be removed by pulling the stainless steel hinge pin. Door is secured with easily operated stainless steel clamps. Cover interlock bracket is welded to the door. Collar studs are provided for mounting inner panels. A removable 12 gauge inner panel is included. Seamless poured-in place gasket. A bonding stud is provided on the door and a grounding stud is provided in the enclosure. A literature pocket is provided for the inside of the door.
Conductor Type
Stranded
Material
Ceramic
Mold Family
GR
Standard
CULus®
Type
One Shot, GR, Vertical Elbow, Horizontal Cable

Packaging

Pkg Qty
6 pc
Standard Packaging Qty
6 pc

Manufacturer Information

Brand
nVent Erico
Sub Brand
Cadweld®

General Product Info

12-Digit UPC
782856000808
GTiN
00782856000808
Product UPC
78285600080
Used With
Plain Copper-Bonded, Threaded Copper-Bonded, Full-Size Galvanized and Stainless Steel Ground Rods

Certifications and Compliance

Certifications
CULus
Features

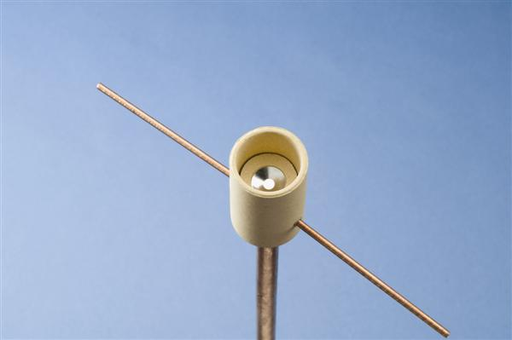

  • Single use ceramic mold which eliminates the need for a graphite mold and handle clamp/frame

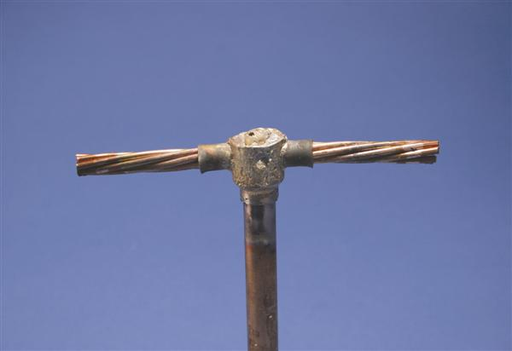

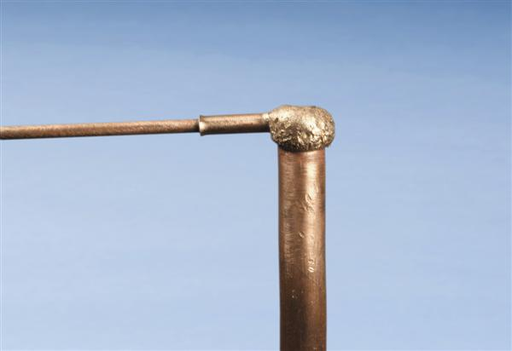

  • Produces a permanent connection that will not loosen or corrode
  • Fits plain copper-bonded, threaded copper-bonded, full-size galvanized and stainless steel ground rods
  • NEC® compliant
Certifications
  • cUL CSA C22.2 No. 41
  • UL ANSI/UL 467
  • DoC, ERICO Cadweld EN IEC 62561-1:2017
