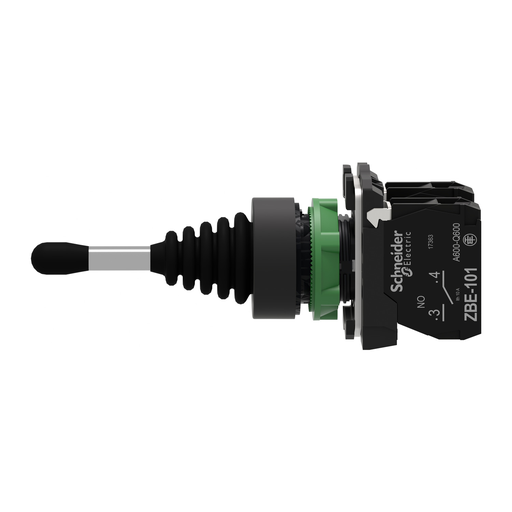

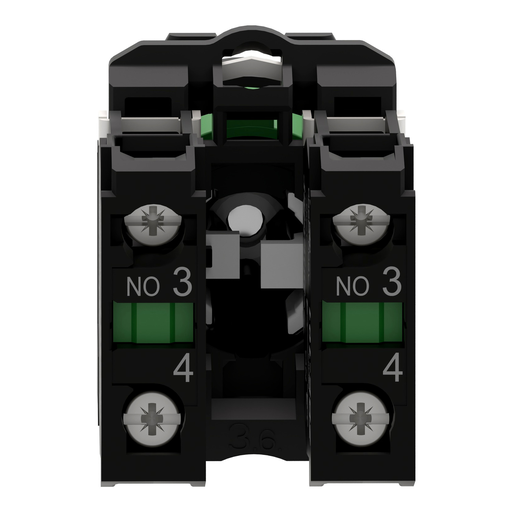

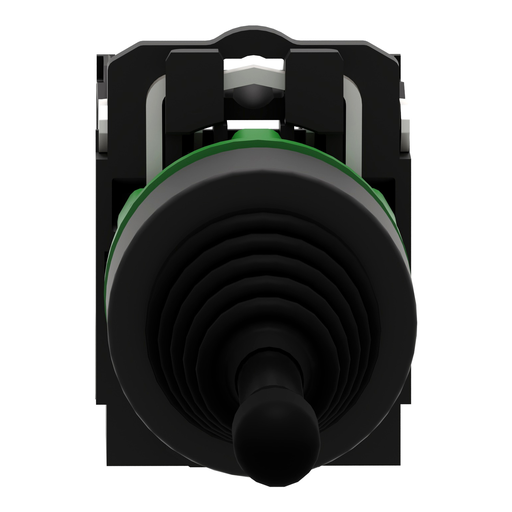

Square D XD5PA12 240 VAC 1.5 Amp Plastic Screw Clamp Terminal Joy Stick Controller

Manufacturer: Square-D / Schneider | Catalog # XD5PA12 | Echo Electric Part # 162066

$369.19/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
This Harmony XB5, joystick controller operates with 2 direction stay-put mechanism. It has 1 x NO contact and a plastic bezel. This complete joystick controller provides an ergonomic interface for controlling your machines. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It provides a smooth and precise control of your machine in a variety of industrial applications. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. It is deal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Technical Information

Bezel Material
Plastic
Contact Material
Silver Alloy
Enclosure
NEMA 13-NEMA 4X
Operating Temperature
-25-70 Adegrees C
Standard
CSA C22.2 No 14,IEC 60947-1,IEC 60947-5-1,IEC 60947-5-4,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
Type
1 NO;Slow-break;Joystick controller

Manufacturer Information

Brand
Schneider Electric
Sub Brand
XD5

General Product Info

12-Digit UPC
389110904270
GTiN
03389110904277
Product UPC
78590138479

Dimensions

Depth
108 mm
Height
47 mm
Warranty Length
18 mth
Width
30 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
BV,CSA,DNV,GL,LROS (Lloyds Register Of Shipping),UL Listed
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
