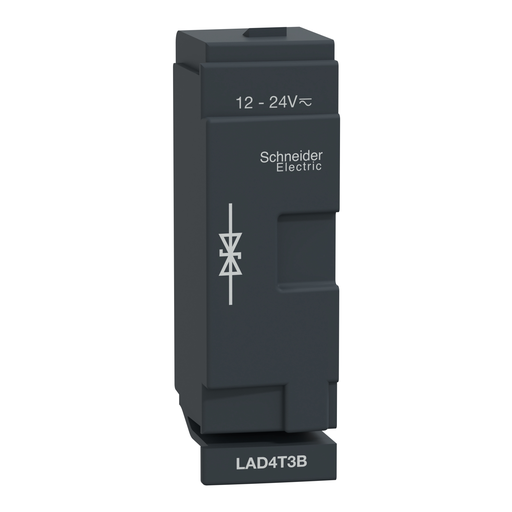

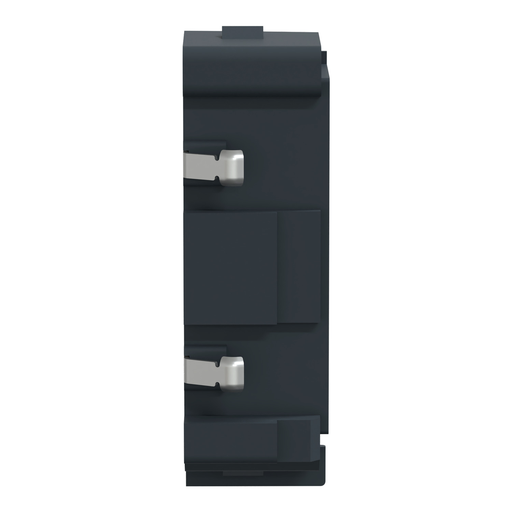

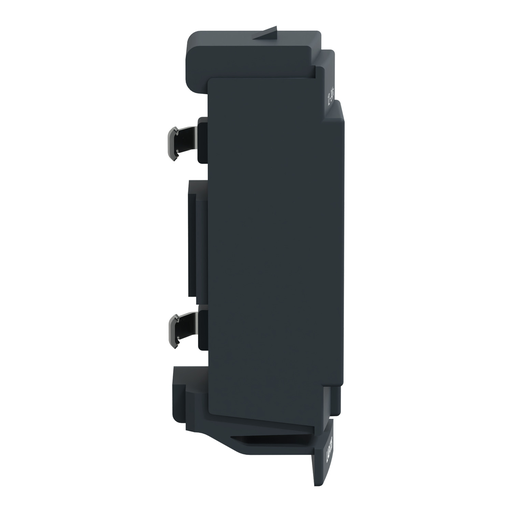

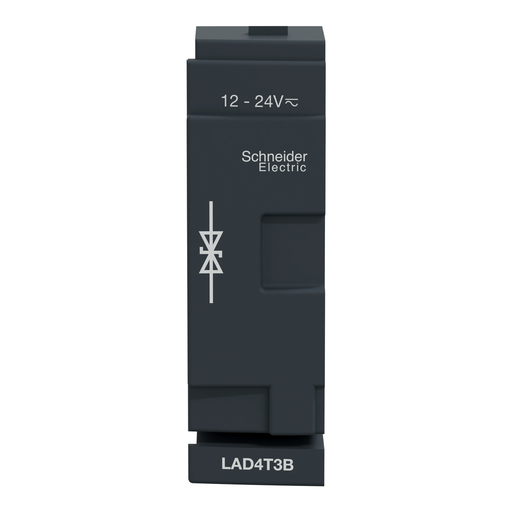

Product image for Square D LAD4T3B D40A TO D65A BIDIRECT DIODE UP TO
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Square D LAD4T3B D40A TO D65A BIDIRECT DIODE UP TO

Manufacturer: Square-D / Schneider | Catalog # LAD4T3B | Echo Electric Part # 162317
$50.90/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
TeSys D suppressor module, for LC1D40A-D80A, LC1DT60A-DT80A contactors. To be used with 12-24V AC or DC control circuit voltage, it provides a bidirectional peak limiting diodes protection limiting the transient voltage to 2 Uc max. Clip-on front mounting, overall size of the contactor is unchanged. Green Premium compliant (RoHS/REACh).

Technical Information

Applications
3P LC1D40A...D80A-4P LC1DT60A...DT80A
Coil Voltage
12...24 V DC-12...24 V AC 50/60 HZ
Mounting Type
Clips
Net Weight
0.02 kg
Operating Temperature
-25-55 degrees C
Standard
CSA C22.2 No 60947-5-1,EN 60947-5-1,GB/T 14048.5,IEC 60947-5-1,UL 60947-5-1
Storage Temperature
-40-80 degrees C
Type
Suppressor module;Bidirectional peak limiting diode

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TESYS,TESYS D

General Product Info

12-Digit UPC
389119410246
Color
Gray
GTiN
03389119410243
Product UPC
78590116831
Weight
0.02 kg

Dimensions

Warranty Length
18 mth

Certifications and Compliance

Certifications
CSA,UL
Country of Origin
Czechia
Compatible Products
  • LC1D65ABD
  • LC1D40ABD
  • LC1D50ABD
  • LC1D40AB7
  • LC1D50AB7
  • LC1D65AB7
  • LC1D40AB6
  • LC1DT80ABD
  • LC1DT60ABD
  • LC1D50AB6
  • LC1DT80AB7
  • LC1D80AB7
  • LC1DT60AB7
  • LC1D65AB6
