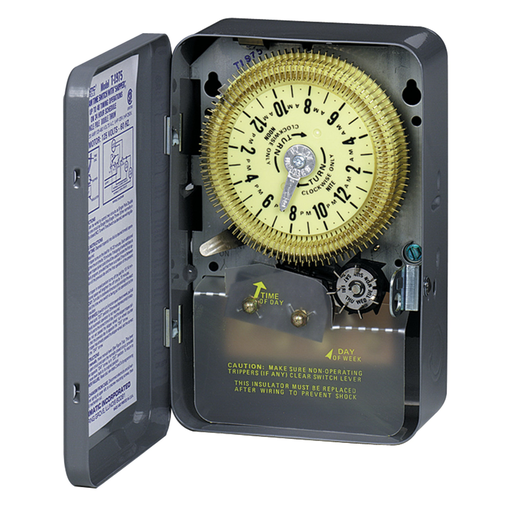

Intermatic T1975E NEMA 1 480 VAC 60 Hz 20 Amp SPDT Electromechanical Time Switch with Skipper Wheel

Manufacturer: Intermatic, Inc | Catalog # T1975E | Echo Electric Part # 162993
$268.81/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
This series of mechanical time switches offers more flexible scheduling capabilities by offering 15-minute intervals. These units also come with trippers that slide in or out easily for fast and accurate settings. All units can control up to 20 A of electrical load and have a single pole, double throw switch.

Technical Information

Action
SPDT
Amperage
20 Amp
Applications
Indoor Lighting Control,Timing/Scheduling ON/OFF
Contact Configuration
1 NO/1 NC
Contact Rating
480 VAC
Enclosure
NEMA 1
Enclosure Type
Indoor type 1 metal
Frequency
60 Hz
Input Voltage
480 V
Material
Metal
Max Operating Temperature
130 degrees F
Max Wire Size
12 AWG
Min Operating Temperature
-40 degrees C
Min Wire Size
14 AWG
Mounting Configuration
Wall mount
Mounting Type
Wall Mount
Number of Circuits
1
Number of Poles
1 Pole
Operating Temperature
-40 To 130 degrees F
Power Consumption
3 W
Power Source
Electricity
Standard
CCSAus Certified
Switch Type
SPDT
Temperature Rating
54.0 degrees C
Type
Medical/Dental/Veterinary - Timers
Voltage
480 Volt
Wattage
3 Watt

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275192614
Color
Gray
Environmental Conditions
Indoor
GTiN
00078275192614
Product Category
Medical/Dental/Veterinary - Timers
Product Type
Medical/Dental/Veterinary - Timers
Product UPC
07827519261
Used With
Filters, heaters

Dimensions

Depth
3.437 Inch
Height
7-7/8 Inch
Warranty Length
1 yr
Width
5.125 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - Lead
Country of Origin
Mexico
Features
  • Provides up to 96 operations (48 ON/48 OFF) every 24 hours
  • Models with skipper wheel allow for operations to be omitted on selected days of the week
  • 15-minute intervals
  • Captive trippers slide in and out of dial for fast, accurate setting
  • NA
