WLK 6ATCFFAA 6IN FURNITURE FEED-BRU

Manufacturer: The Wiremold Co | Catalog # 6ATCFFAA | Echo Electric Part # 163489
$965.93/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Buy American Compliant Buy American Compliant Product Spec Sheet Installation / Instruction Manual CAD Drawing #1

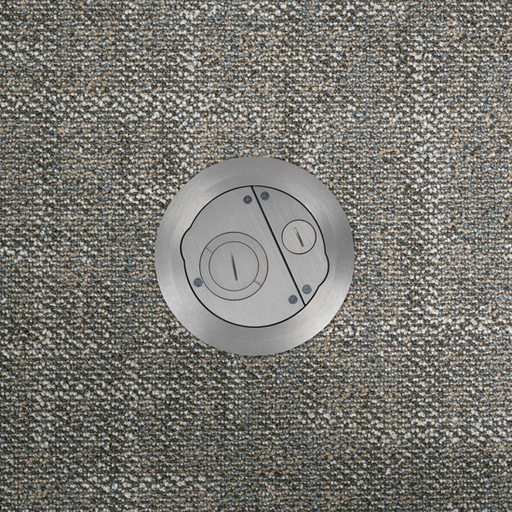

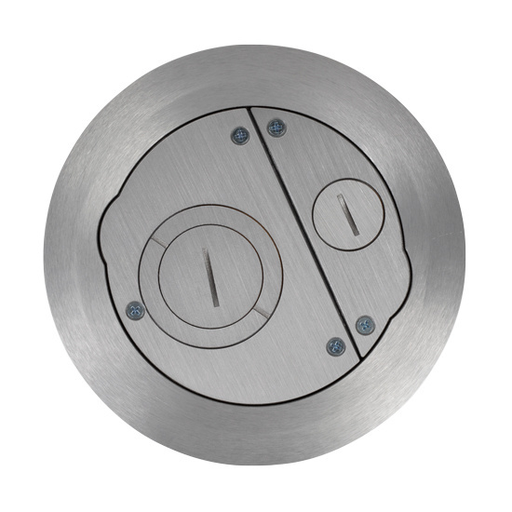

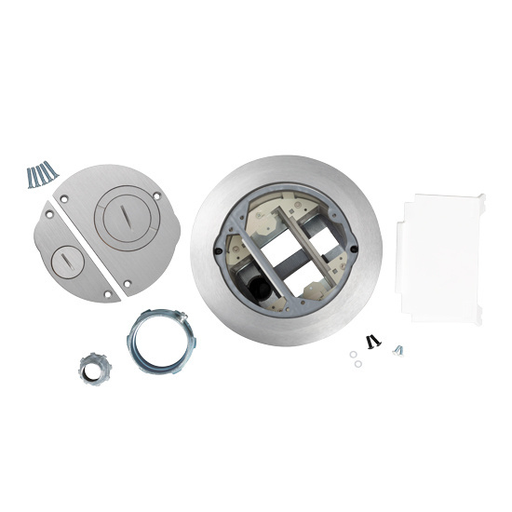

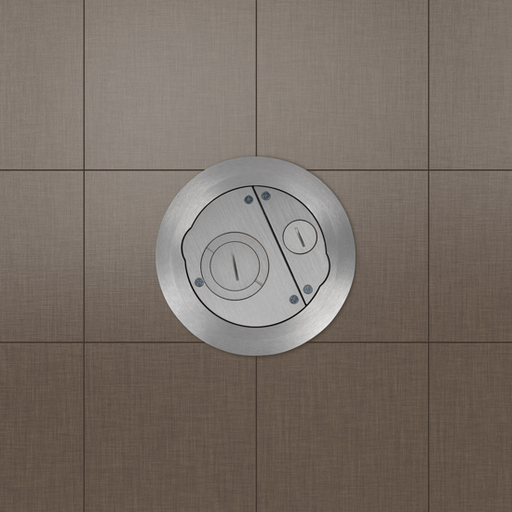

For carpet, tile, wood and laminate concrete floor coverings. For use in 6'' (152mm) diameter opening. Devices are recessed 3 1/4'' (83mm) below floor surface. Die-cast aluminum cover assembly provides one (1) 3/4'' trade size screw plug opening and one (1) concentric 2''-1 1/4'' trade size screw plug opening and is available in the following powder coated finishes: (BK) black, (GY) gray, (NK) nickel, (BS) brass, and (BZ) bronze. INCLUDED: For Side Compartments: No Device Plates are provided. For Center Compartment: No Device Plates are provided. For Bottom Feed Compartment: One (1) 5PTHA 1/2-Gang Pass-Through Housing Assembly, One (1) 5FFHA 1 1/2-Gang Pass-Through Housing Assembly, One (1) 575CHA 1/2-Gang 3/4'' Conduit Housing Assembly (also includes junction box attached to the 3/4'' conduit). NOTE: UL Fire Classified for up to 2-hour rated floors.

Technical Information

Applications
Commercial
Material
Aluminum
Size
16 1/4"
Type
Poke-Thru

Manufacturer Information

Brand
Legrand
Sub Brand
Wiremold

General Product Info

12-Digit UPC
786564096337
Color
Aluminum
GTiN
00786564096337
Product UPC
78656409633
Weight
9.35 lb

Dimensions

Depth
16-1/4 Inch
Height
16-1/4 Inch
Width
7.75 in

Certifications and Compliance

Buy American Compliant
Y
Certifications
CULUS,NAFTA,ROHS
Country of Origin
USA
Certifications
  • RoHS Compliant
  • NAFTA Compliant
  • cULus Listed
Features
  • The Evolution Series poke-thru design includes all metal die-cast aluminium cover assemblies, with two unique spring-loaded slide egress doors
  • Available in surface style and flush style in standard finishes of brass, gray, black, nickel, bronze, and aluminium offering a wider range of aesthetic options
  • Added furniture feed capacity. ATCFF Series Poke-Thru Device offers the largest dual service furniture feed capability on the market.
  • Wide trim flange is designed to meet the ADA Accessibility Guidelines as it pertains to ADA Standard 4.5 which addresses changes in floor and ground surface levels. The poke-thru trim flanges are beveled so the slope is no greater than 1:2 ratio.
  • All Evolution Series Poke-Thru Devices like every Wiremold/Legrand Poke-Thru Device meets and exceeds UL scrub water exclusion requirements for tile, carpet, and wood covered floors.
  • Suitable for use in air handling spaces, in accordance with Sec 300-22(C) of the National Electrical Code.
  • Quick and easy installation without the need for additional fasteners or a second installer.
  • UL Listed and UL Fire Classified to U.S. and Canadian safety standards. UL Fire rated for up to 2-hour rated floors maintains the fire classification of the floor.
  • This product meets the material restrictions of RoHS
