LITH ELM4L ELM4L

Manufacturer: Lithonia Lighting | Catalog # ELM4L | Echo Electric Part # 165474
$175.65/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Safety Data Sheet

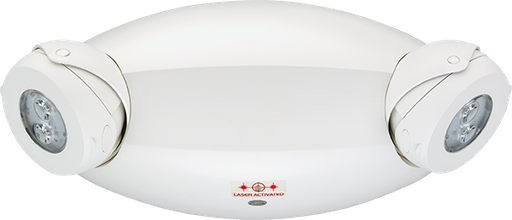

The Contractor Select Quantum series from Lithonia Lighting with improved aesthetics and performance, is easy to install and maintain. The advanced optical design and electronic technology deliver high-quality light output when it is needed most.

Technical Information

Applications
Education,Government,Healthcare,Hospitality,House Of Worship,Offices & Banks,Residential,Retail,Sports And Recreation
Color Rendering Index
70
Color Temperature
5000 K
Correlated Color Temp
5,000 K
Lamp Type
LED
Lens Color
Clear
Lens Material
Acrylic
Lumens
640 Lumen
Material
Thermoplastic
Mounting Type
Surface
Number of Lamps
2
Power Source
Hardwired
Type
Emergency Lighting Unit
Voltage
120 Volt
Wattage
3.01 Watt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
191723916287
Color
White
Construction
New Construction,Remodel
Environment
Indoor,Outdoor
Environmental Conditions
Indoor,Outdoor
Finish
Textured
Fixture Type
Emergency Lighting Unit
GTiN
00191723916287
Product UPC
19304772445
Weight
3 lb

Dimensions

Height
4 Inch
Length
14 Inch
Width
16.5 in

Certifications and Compliance

Country of Origin
Mexico,Mexico
Features
  • APPLICATIONS: Ideal for larger commercial indoor applications requiring attractive LED unit equipment for mounting heights up to 24'

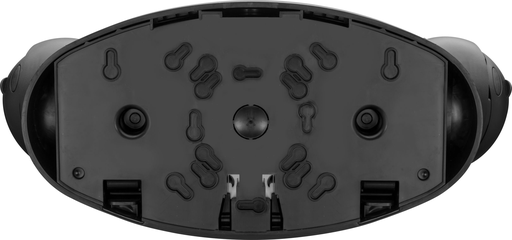

  • INSTALLATION: Wall and ceiling mount with tool-less removal of front cover from back-plate for ease of installation and maintenance
  • DIMMING: Not applicable
  • RATINGS: UL damp location listed standard at 50-104 degrees F, meets or exceeds all applicable requirements for Life Safety Code and state specific requirements
  • VOLTAGE: Functions between 120 and 277 volts with input wattage of 3.15 watts
  • LIFE: The typical life of the LED lamp is 10 years using two 3.3 Watt LED lamps for emergency light
  • DESIGN: The housing is a standard thermoplastic, compact and low-profile design, it's 5VA flame rated, impact- and scratch-resistant and corrosion proof, the UV-stable resin resists discoloration from natural and man-made light sources
  • BATTERY: Emergency light provided with test switch, status indicator and rechargeable battery with maintenance-free nickel-cadmium battery provides 90 minutes of emergency power
  • WARRANTY: Buy with confidence with a 5-year limited warranty
  • DIMENSIONS: Length: 13.37\" x Height 5.93\" x Width 3.7\
Applications
  • Education
  • Government
  • Healthcare
  • Hospitality
  • House of Worship
  • Offices & Banks
  • Residential
  • Retail
  • Sports and Recreation
Standards
  • C-UL-US
  • NFPA 101
  • NFPA 70
  • NOM
  • ULCA Title 20
