3M 7100167058 3M™ Scotchlok™ IDC C

Manufacturer: 3M | Catalog # 7100167058 | Echo Electric Part # 166743
$87.43/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
902 available

For Delivery

Not in local stock *
Check another branch
Product Spec Sheet

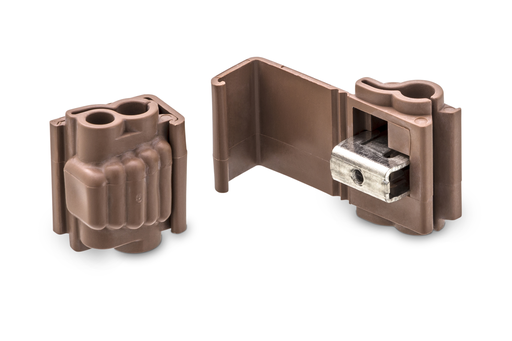

3M™ Scotchlok™ Insulation Displacement Connector 567 electrically connects a tap wire to a run (through) wire while insulating the connection. This connector is suitable for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems and automotive/boat/RV wiring. Polypropylene insulated and self stripping.

Technical Information

Applications
For Tape and Parallel Splicing
Conductor Size
18-14 AWG, 12-10 AWG
Material
Polypropylene
Max Operating Temperature
105.0 degrees C
TC Connection
Run, Tap
Temperature Rating
221 degrees F
Type
Insulation Displacement
Voltage
600 Volt
Wire Size
18-14 AWG (Tap)/12-10 AWG (Run)

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok™

General Product Info

12-Digit UPC
054007148876
Color
Brown
GTiN
10054007148873
Product Type
Connector
Product UPC
05400714887

Certifications and Compliance

Country of Origin
USA
Features
  • VERSATILE USES: Used for general purpose electrical connections on an auto, boat, van or trailer

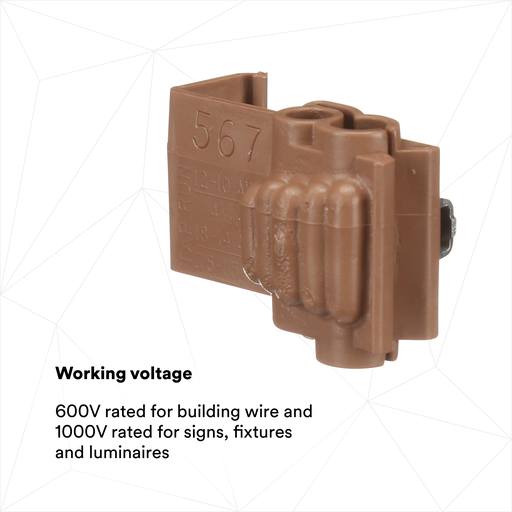

  • WORKING VOLTAGE: 600V rated for building wire and 1000V rated for signs, fixtures and luminaires
  • WIRE SIZES: Accommodates solid/stranded wires (Tap) 18-14 AWG & (Run) 12-10 AWG
  • HEAT RESISTANT: Connector withstands temperatures of 221 °F (105 °C)

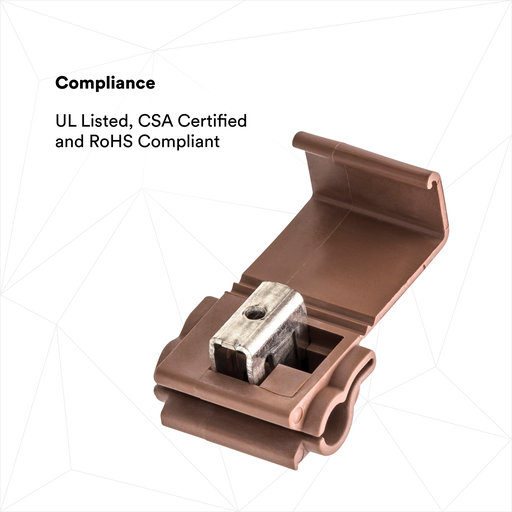

  • COMPLIANCE: UL Listed, CSA Certified and RoHS Compliant
  • STABILITY: 5-year shelf life (from date of manufacture)
