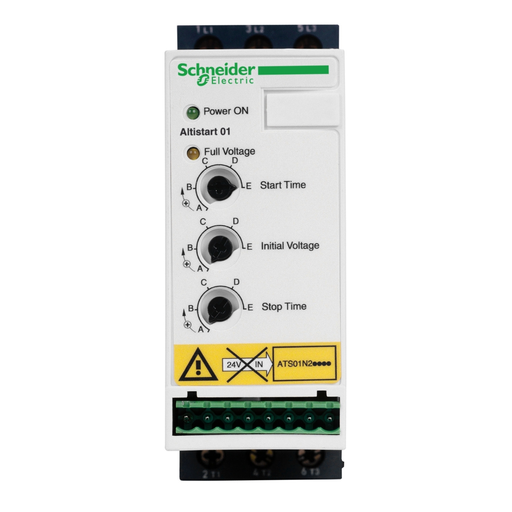

Product image for Square D ATS01N209RT 440 to 480 VAC 9 Amp 5 Hp 3-Phase IP20 Soft Starter
Image thumbnail 0
Image thumbnail 1
Email

Square D ATS01N209RT 440 to 480 VAC 9 Amp 5 Hp 3-Phase IP20 Soft Starter

Manufacturer: Square-D / Schneider | Catalog # ATS01N209RT | Echo Electric Part # 166995
$256.39/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This Altistart 01 soft starter is DIN rail mounted and can feed 3-phase asynchronous motors with a rating up to 9A. This Altistart 01 can be used for a motor rated power up to 1.5kW or 2hp for 3-phase (200V to 240V AC). This DIN rail mounted soft starter is designed to enable smooth start for simple machines such as conveyors, conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes and belt-driven machinery. It is 45mm wide, this makes it one of the smallest soft starters on the market; it can be installed nearly everywhere. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Simple setup with only 2 settings: possible to configure by non-specialists. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.

Technical Information

Amperage
9A
Applications
ASYNCHRONOUS MOTORS
Current
45 Amp
Display Type
1 LED Green)starter Powered Up,1 LED Yellow)nominal Voltage Reached
Enclosure
IP20
Net Weight
0.42 kg
Number of Phases
3 Phase
Operating Temperature
-10...40 degrees C WITHOUT DERATING-40...50 degrees C WITH CURRENT DERATING OF 2 PER degrees C
Output Voltage
<= power supply voltage
Power Supply
460...480 V - 10...10 ,50...60 HZ - 5...5
Size
5.16 in
Standard
EN/IEC 60947-4-2
Storage Temperature
-25-70 degrees C EN/IEC 60947-4-2
TC Connection
4 MM SCREW CLAMP TERMINAL - RIGID 1 1...10 MMA AWG 8 POWER CIRCUIT-SCREW CONNECTOR - FLEXIBLE WITHOUT CABLE END 2 0.5...1.5 MMA AWG 16 CONTROL CIRCUIT-SCREW CONNECTOR - RIGID 1 0.5...2.5 MMA AWG 14 CONTROL CIRCUIT-4 MM SCREW CLAMP TERMINAL - RIGID 2 1...6 MMA AWG 10 POWER CIRCUIT-SCREW CONNECTOR - RIGID 2 0.5...1 MMA AWG 17 CONTROL CIRCUIT-SCREW CONNECTOR - FLEXIBLE WITH CABLE END 1 0.5...1.5 MMA AWG 16 CONTROL CIRCUIT-4 MM SCREW CLAMP TERMINAL - FLEXIBLE WITHOUT CABLE END 1 1.5...10 MMA AWG 8 POWER CIRCUIT-SCREW CONNECTOR - FLEXIBLE WITHOUT CABLE END 1 0.5...2.5 MMA AWG 14 CONTROL CIRCUIT-4 MM SCREW CLAMP TERMINAL - FLEXIBLE WITH CABLE END 2 1...6 MMA AWG 10 POWER CIRCUIT-4 MM SCREW CLAMP TERMINAL - FLEXIBLE WITHOUT CABLE END 2 1.5...6 MMA AWG 10 POWER CIRCUIT
Type
ATS01;Soft starter
Voltage
414-528 Volt,50...60 HZ-5...5 ,<= POWER SUPPLY VOLTAGE

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ATS01

General Product Info

12-Digit UPC
389110667243
GTiN
03389110667240
Product UPC
78590187587
Weight
0.42 kg

Dimensions

Depth
131 mm
Height
124 mm
Warranty Length
18 mth
Width
45 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
C-tick,CCC,CSA,GOST,UL
Country of Origin
Germany
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
