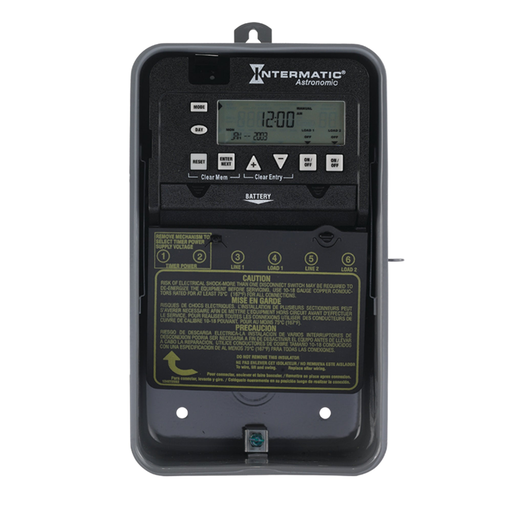

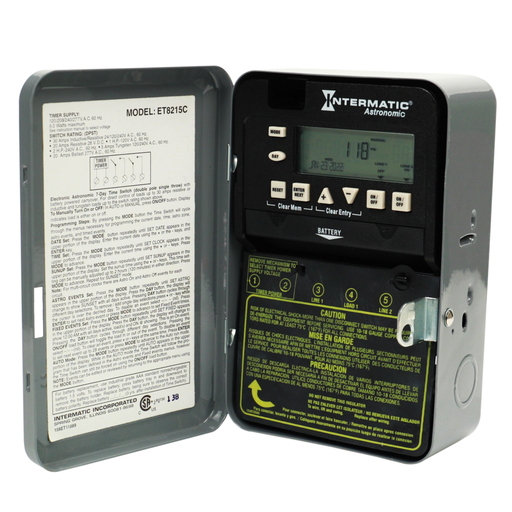

Product image for Intermatic ET8215C 24/7 Electronic Astronomic Time Switch, 2-Circuit, SPST, 120-277V 30A, Type-1 Steel
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Intermatic ET8215C 24/7 Electronic Astronomic Time Switch, 2-Circuit, SPST, 120-277V 30A, Type-1 Steel

Manufacturer: Intermatic, Inc | Catalog # ET8215C | Echo Electric Part # 168016
$349.22/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
6 available

For Delivery

Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet

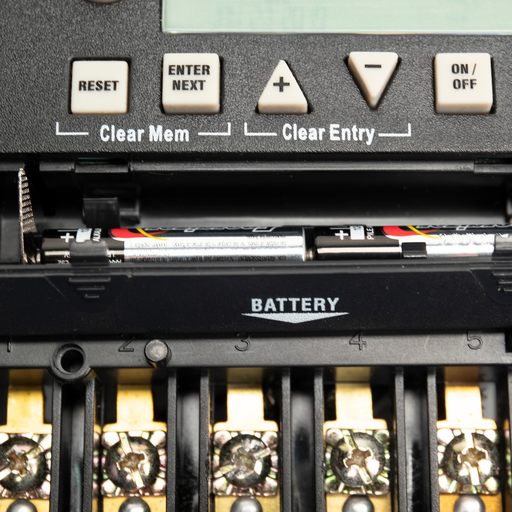

This series offers an easy way to upgrade from a basic mechanical time switch to an electronic time switch. These timers will allow for up-to-the-minute programming, battery backup for power loss, 14 ON/OFF events per circuit, and automatic daylight saving time corrections without the need of user interaction. They come in standard 24-hour, 7-day, and 7-day astronomic (sunrise to sunset) versions.

Technical Information

Action
SPST
Amperage
30 Amp
Applications
Indoor, HVACR, Industrial
Connection Type
Teeter Type
Contact Configuration
(2) SPST - 1 NO
Contact Rating
5 A at 120/240 VAC (Tungsten NO), 30 A at 120/240 VAC (Resistive NO), 20 A at 28 VDC (Resistive NO), 30 A at 120/240 VAC (Inductive NO), 20 A at 120 - 277 VAC (Ballast NO)

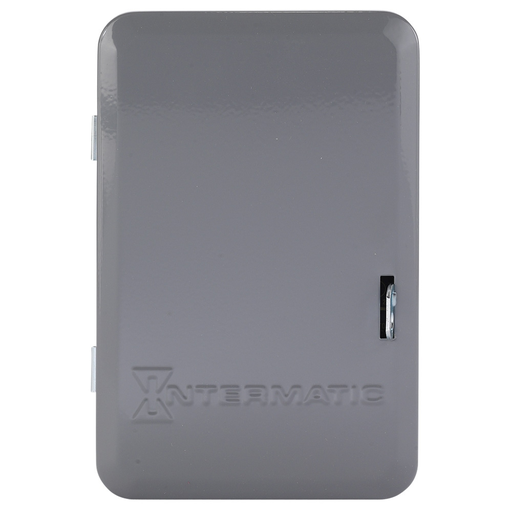

Enclosure
NEMA 1 Steel
Enclosure Rating
1
Enclosure Type
NEMA 1
Frequency
50/60 Hz
Input Voltage
208-277 V
Material
Steel
Max Operating Temperature
104 degrees F
Min Operating Temperature
-40 degrees C
Mounting Type
Wall Mount
Number of Circuits
2
Number of Poles
1 Pole
Operating Cycles
ON-OFF-ON
Operating Temperature
-40 to 155 degrees F, -40 to 68 degrees C
Power Consumption
6 W
Standard
CCSAus Certified,California TITLE 24 Compliant,HVACR,Title CA 20 Listed
Switch Type
2xSPST, 1xDPST Or Pulse
TC Connection
Teeter Type
Temperature Rating
-40 to 155 degrees F
Type
Astronomic, Electronic, 1-Pole
Voltage
277 Volt

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275089761
Color
Gray
GTiN
00078275089761
Product Category
Medical/Dental/Veterinary - Timers
Product Type
Medical/Dental/Veterinary - Timers
Product UPC
07827508976
Used With
Lighting

Dimensions

Depth
3.437 Inch
Height
7-7/8 Inch
Warranty Length
1 yr
Width
5.125 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - Lead
Country of Origin
China
Features
  • Selector switch to determine input voltage between 120-277 VAC
  • Up to 28 events total
  • To-the-minute accuracy
  • Temporary override or permanent manual override
  • Automatic Daylight Saving Time adjustment
  • Astronomic models enable dusk-to-dawn scheduling
  • NA
