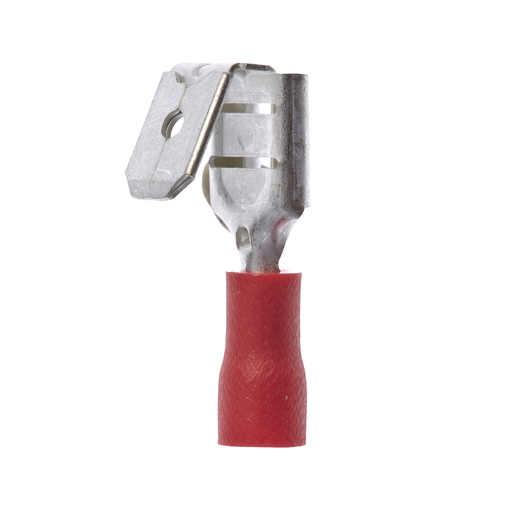

Product image for 3M 7100165280 3M™ Scotchlok™ Vinyl
Image thumbnail 0
Image thumbnail 1
Email

3M 7100165280 3M™ Scotchlok™ Vinyl

Manufacturer: 3M | Catalog # 7100165280 | Echo Electric Part # 168398
$115.95/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page
3M™ Scotchlok™ Color-Coded Male-Female Disconnect Terminal has a tongue portion with fingers that grip a male quick-slide and a tongue extension that is to be gripped by a female quick-slide. This is a multi-stack disconnect terminal with a vinyl-insulated, butted-seam barrel. It has durable brass construction for good conductivity and a tin-plated finish for corrosion resistance.

Technical Information

Barrel Length
0.23 in
Barrel Type
Butted
Conductor Size
22-18 AWG
Insulation Material
Vinyl
Material
PVC
Terminal Size
22 - 18 AWG
Terminal Style
Piggy-back
Terminal Type
Disconnect
Type
Disconnect

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok

General Product Info

12-Digit UPC
051128588741
GTiN
00051128588741
Product UPC
05112858874

Dimensions

Length
0.87 Inch
Overall Length
0.87 in
Thickness
0.032 in

Certifications and Compliance

Country of Origin
Taiwan
Features
  • The tongue portion with fingers grip a male quick-slide and a tongue extension grips a female quick-slide
  • Allows for quick and easy disconnect of wires
  • Mates with 0.25-in wide male and female tab
  • Accommodates wire sizes 22 to 18 AWG
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
