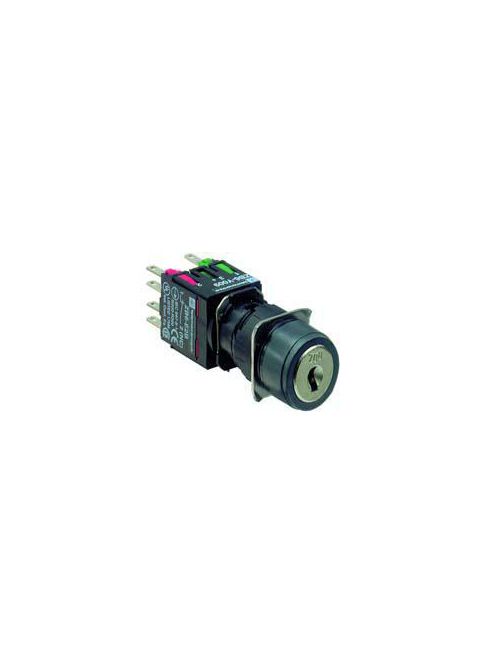

Product image for Square D XB6AGH5B 16 mm 1.5 Amp 240 VAC 1NO 1NC 3-Position Maintained Round Key Non-Illuminated Selector Switch
Image thumbnail 0
Image thumbnail 1
Email

Square D XB6AGH5B 16 mm 1.5 Amp 240 VAC 1NO 1NC 3-Position Maintained Round Key Non-Illuminated Selector Switch

Manufacturer: Square-D / Schneider | Catalog # XB6AGH5B | Echo Electric Part # 170186
$73.74/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Complete selector switch, Harmony XB6, black Ø 16 3 position stay put 1NO+1NC 200

Technical Information

Action
SLOW-BREAK
Actuator
3 POSITIONS 70A,KEY SWITCH,STAY PUT
Amperage
3 Amp 120 V, AC-15, B300 EN/IEC 60947-5-1-1.5 Amp 240 V, AC-15, B300 EN/IEC 60947-5-1-0.1 Amp 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 Amp 125 V, DC-13, R300 EN/IEC 60947-5-1
Bezel Material
Plastic
Contact Configuration
1 NO + 1 NC
Contact Material
Silver Alloy
Contact Rating
AC15 - DC13
Enclosure
NEMA 4/4X
Net Weight
0.036 kg
Operating Temperature
-25-70 Adegrees C
Size
16 MM,18 MM,18 MM,80 MM
Standard
CSA C22.2 No 14,EN/IEC 60947-1,EN/IEC 60947-5-1,EN/IEC 60947-5-5,JIS C 852,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
FASTON CONNECTORS 2.8 X 0.5 MM
Type
COMPLETE SELECTOR SWITCH
Voltage
240 VAC

Manufacturer Information

Brand
Schneider Electric
Sub Brand
XB6

General Product Info

12-Digit UPC
785901356448
Environmental Conditions
WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)
GTiN
03389110764673
Product UPC
78590135644
Weight
0.036 kg

Dimensions

Height
18 mm
Warranty Length
18 mth
Width
18 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CCC,CSA,GOST,UL
Country of Origin
France
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
