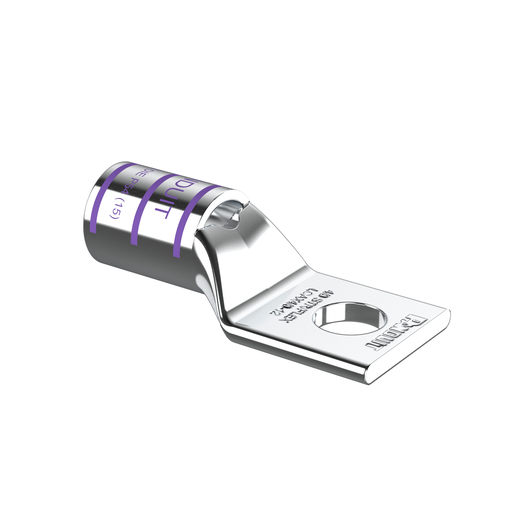

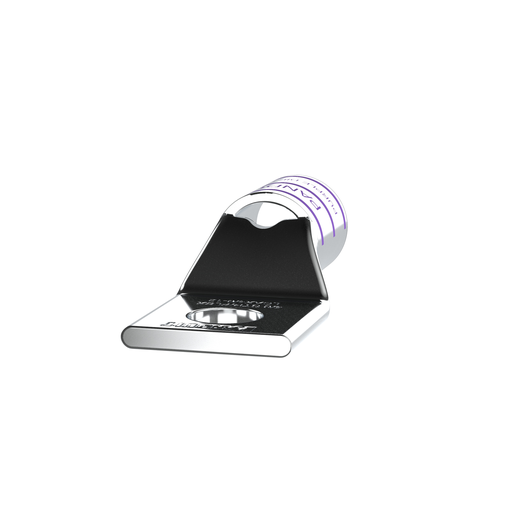

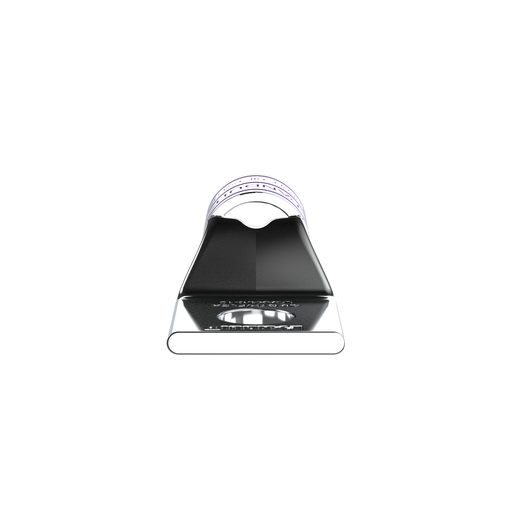

Product image for Panduit LCAX4/0-12-X 4/0 AWG 1-Hole Copper Compression Lug
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Panduit LCAX4/0-12-X 4/0 AWG 1-Hole Copper Compression Lug

Manufacturer: Panduit Corp | Catalog # LCAX4/0-12-X | Echo Electric Part # 171039
$1,640.79/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Tuesday 7:00am CT
1,736 available

For Delivery

Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page Installation / Instruction Manual
The LCAX4/0-12-X Copper Compression Connector Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified.

Technical Information

Angle
Straight
Barrel Length
1.03 in
Barrel Type
Standard
Cable Size
AWG
Color Coding
Purple
Material
Copper
Number of Holes
1 Hole
Size
4/0 AWG Class B, C, G, H, I, K, M and DLO
Stud Size
1/2 in
Tongue Thickness
0.16 in
Tongue Type
Standard
Tongue Width
1.19 in
Type
Preterminated Copper Trunk, Category 6
Voltage
35,000 Volt

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983435647
Color
White
Finish
Tin Plated
GTiN
00074983435647
Product UPC
07498343564

Dimensions

Outer Diameter
0.81 in
Overall Length
2.64 in

Certifications and Compliance

Buy American Compliant
Y
CA Prop65 Warning
No
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: C22.2 No. 65-13, 486A-486B File #E52164, ABS approved
Prop 65
  • No
