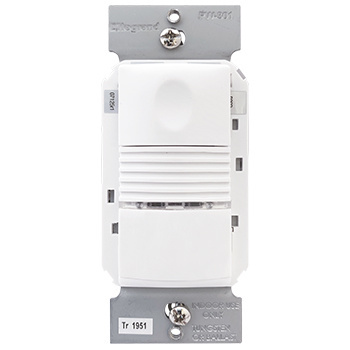

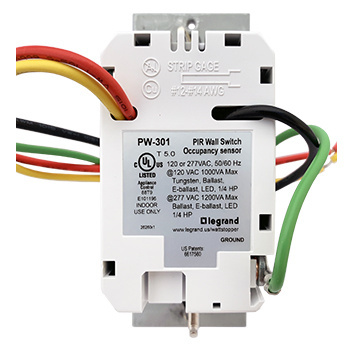

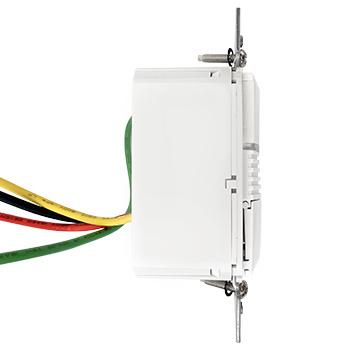

Wattstopper PW-301-W Passive Infrared Wall Switch Occupancy Sensor, 120/277V - White

Manufacturer: Wattstopper / Legrand | Catalog # PW-301-W | Echo Electric Part # 171493
$111.71/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
7 available

For Delivery

Not in local stock *
Check another branch
Product Spec Sheet Installation / Instruction Manual
The PW-301 Passive Infrared (PIR) Wall Switch Sensor turns lights ON and OFF based on occupancy. It contains two relays for controlling two independent lighting loads or circuits, and a variety of features. (white)

Technical Information

Amperage
4.3 Amp
Applications
For Offices, Conference Rooms, Lunch/Break Rooms, Commercial
Enclosure
Plastic Housing
Indicator
True
Load Rating
1000 W @ 120 VAC, 1200 W @ 240/277 VAC
Material
Plastic
Mounting Type
Strap, Surface
Number of Connections
5.0
Number of Poles
Multi,Location, 1 Pole
Operating Cycles
1000000
Operating Temperature
35degrees C
Sensing Range
1050 sq ft
Sensor Type
Passive Infrared
Standard
CSA C22.2 No. 14,IEC 60947-3,UL 508
Temperature Rating
35 degrees C
Type
Indoor, Wall Switch
Voltage
277 Volt

Manufacturer Information

Brand
WattStopper
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
754182935260
Color
White
Environmental Conditions
95% Humidity, UL 94 Requirements, V2 Rated Flammability
Finish
Matte
GTiN
00754182935260
Product UPC
75418293526

Dimensions

Depth
1.81 Inch
Length
2.73 Inch
Width
1.75 in

Certifications and Compliance

Country of Origin
China
Features
  • Color-matched lens and low profile for appealing design
  • Optional neutral connection with break off tab to expose neutral terminals
  • 120/240/277 VAC and 347 VAC models
  • Allows multi-way control from one of up to four control locations
  • High sensitivity and dense coverage for exceptional performance
  • Defaults to Manual-ON operation for maximum energy savings
