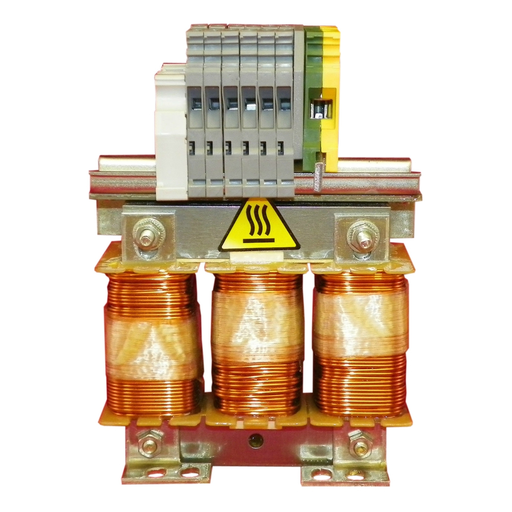

Product image for SQUARED VW3A4553 line/motor choke -
Email

SQUARED VW3A4553 line/motor choke -

Manufacturer: Square-D / Schneider | Catalog # VW3A4553 | Echo Electric Part # 172610
$2,923.50/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This line choke is an option for variable speed drives of Altivar range. Its rated current is equal to 17A. It provides improved protection against overvoltages on the line supply and contributes to reduce harmonic distortion of the current produced by the drive. Its protection index is IP00. It has an inductance value of 2mH. It weighs 3.5kg and its dimensions are, 130mm wide, 155mm high, 90mm deep. Its use is particularly recommended in case of close connection of several drives in parallel, line supply with significant disturbance from other equipment (interference, overvoltages), line supply with voltage imbalance between phases.

Technical Information

Amperage
17 Amp
Applications
Reduction of current harmonics;Reduction of overvoltages at motor terminals;Altivar 61;Altivar Process ATV900;Lexium 05;Altivar 312 Solar;Altivar Process ATV600;Altivar 32;Altivar 71;Lexium 62;Easy Altivar 310;Altivar 12;Altivar 31C;Lexium 52;Altivar 312;Lexium 32;Altivar Machine ATV320;Altivar Machine ATV340;Easy Altivar 310L
Line Rated Current
17 A
Net Weight
3.5 kg
Number of Phases
3 Phase
Operating Temperature
45-55 Adegrees C WITH CURRENT DERATING OF 2 PER Adegrees C)-0-45 Adegrees C WITHOUT CURRENT DERATING)
Standard
EN 50178,IEC 60076 (with HD398),VDE 0160 Level 1
Storage Temperature
-25-70 degrees C
TC Connection
TERMINAL 6 MMA / AWG 8, 0.8-1 N.M
Type
Line/motor choke;2 mH
Wattage
75 Watt

Manufacturer Information

Brand
Schneider Electric

General Product Info

12-Digit UPC
389118066031
GTiN
03389118066038
Product UPC
78590167380
Weight
3.5 kg

Dimensions

Depth
90 mm
Height
155 mm
Warranty Length
18 mth
Width
130 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Czechia
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
