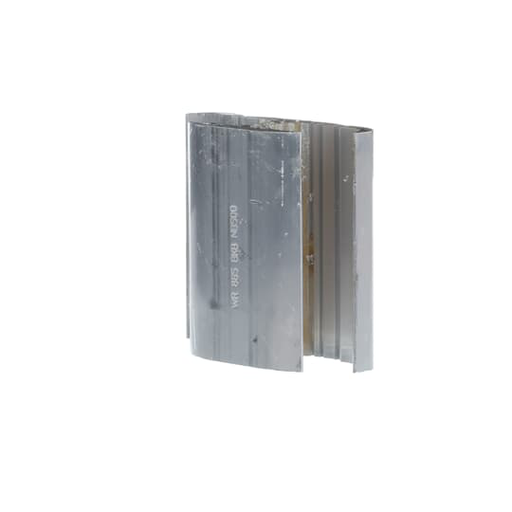

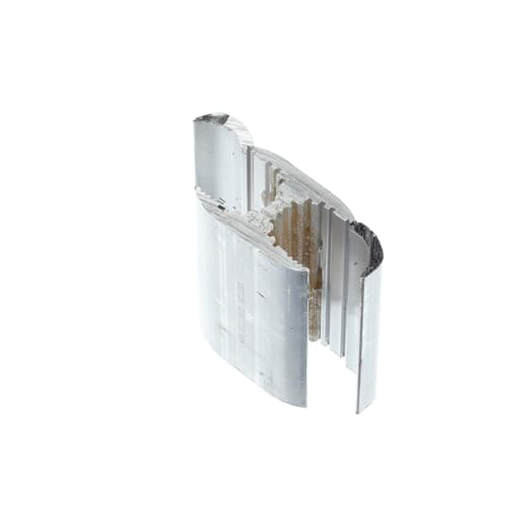

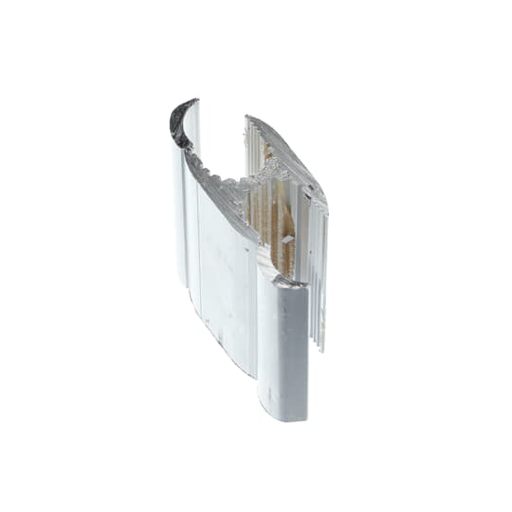

Product image for Blackburn WR885 Compression Connector
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Blackburn WR885 Compression Connector

Manufacturer: Thomas & Betts Co | Catalog # WR885 | Echo Electric Part # 173732
$19.27/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Safety Data Sheet Product Catalog Page
Aluminum Wide Range H-Type Compression Connector Main: 477 18/1-4/0 ACSR, 500-4/0 Str., Tap: 477 18/1-4/0 ACSR, 500-4/0 Str., Die: N 3 inches long

Technical Information

Applications
For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors.
Material
Aluminum
Number of Conductors
2
Size
Length 3 inch
TC Connection
Compression
Temperature Rating
90 degrees C
Type
Wide-Range, Parallel, Long Sleeve
Wire Size
Main: 477 (18/1)-4/0 ACSR or 500-4/0 STR AWG ; Tap: 477 (18/1)-4/0 ACSR or 500-4/0 STR AWG

Manufacturer Information

Brand
ABB
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786107186
Finish
Tin Plated
GTiN
00783786107186
Product UPC
78378610718
Used With
Round, Solid and Stranded Conductors, Combinations of Aluminum to Copper, and Aluminum to Aluminum Conductors

Dimensions

Length
3 Inch
Features
  • Fold-in tabs provide positive tab interlock as tool closes.
  • Enables excellent connector contact without distorting the conductor's shape.
  • Made of 1350 Aluminum alloy to provide high strength and conductivity. Prefilled with oxide inhibitor held captive in the rib/connection area.
  • RUS accepted and complies with ANSI C119.4
Notes
  • Will accept standard conductors of the same size with a 3 percent reduction of compressed diameter.
  • Fig. 1
  • All die connectors are for use with hydraulic tools, 12-ton and greater.
