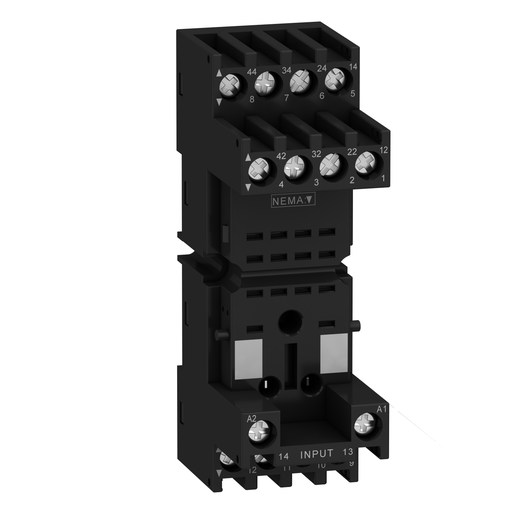

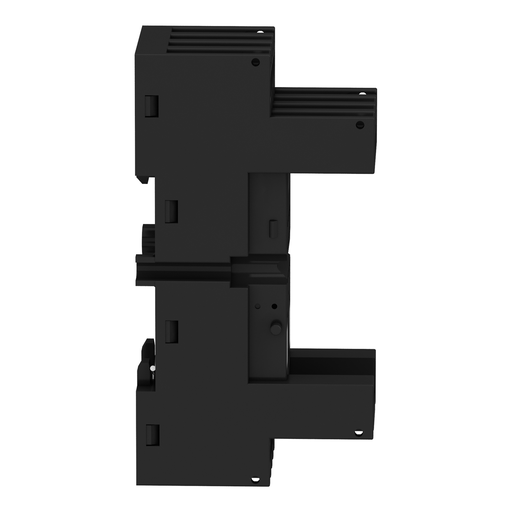

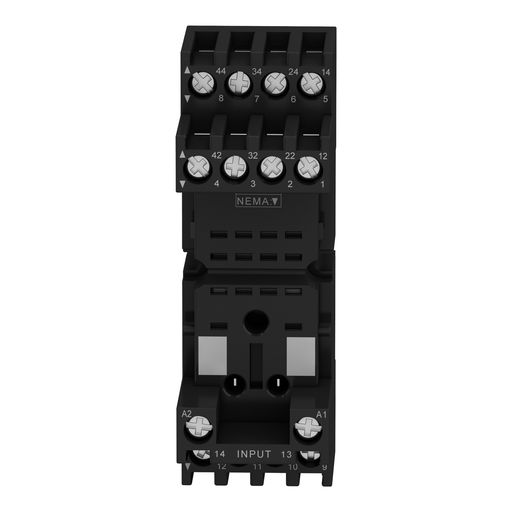

Square D RXZE2M114M 250 Volt 10 Amp 35 mm Din Rail/Panel Mount Box Lug Connector Terminal Relay Socket

Manufacturer: Square-D / Schneider | Catalog # RXZE2M114M | Echo Electric Part # 174318

$11.30/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
3 available

For Delivery

Not in local stock *
Check another branch
"This Harmony RXZ plug-in relay socket has a coil control voltage of 250V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use with space-saving design." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "Easy installation and connect to the relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0

Technical Information

Amperage
12 Amp-6 Amp
Applications
PLUG-IN RELAY RXM 2 C/O-PLUG-IN RELAY RXM 4 C/O
Dielectric Strength
2500 V
Enclosure
IP20
Line Rated Current
10 A
Net Weight
0.055 kg
Operating Temperature
-40-55 degrees C
Standard
IEC 61984
Storage Temperature
-40-85 degrees C
Type
Socket
Voltage
250 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ZELIO

General Product Info

12-Digit UPC
389119404252
GTiN
03389119404259
Product UPC
78590175805
Weight
0.055 kg

Dimensions

Length
8 mm
Warranty Length
18 mth
Width
27 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,Lloyd's,UL
Country of Origin
France
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • RXM040W
Cross Sell Products
  • RXZE2M114
  • RXZE2S114M
  • RXZE14P
