BRO AE50110DCL FLEX DC SERIES FAN/LIGHT ADJUSTABLE CFM 50/80/110

Manufacturer: Nutone | Catalog # AE50110DCL | Echo Electric Part # 174816
$209.00/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
30 available

For Delivery

Not in local stock *
Check another branch
Product Spec Sheet

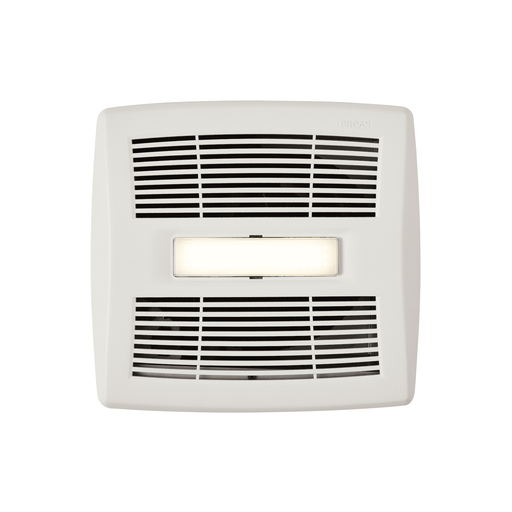

Broan® AE50110DCL Flex DC™ Series Exhaust Bath Fan with LED, ENERGY STAR® offers easy, room side installation, with “No Attic Access Required”. Ceiling mounted ventilation fan features foldable mounting ears and EZ Duct connector for easy installation. New duct damper technology provides a tighter seal, resulting in reduced warm and cold air backdrafts. This energy efficient fan operates at a selectable CFM range of 50-80-110 at a quiet operation of <0.3-0.4-0.9 sones.

Technical Information

Amperage
0.4 Amp
Color Temperature
3500 K
Correlated Color Temp
3500 K
Duct Shape
Round
Light Type
LED
Lumens
800 Lumen
Motor Type
Brushless DC
Mounting Type
Ceiling
Nightlight
No
Power Rating
10.6 W
Voltage
120 Volt

Manufacturer Information

Brand
Broan-NuTone

General Product Info

12-Digit UPC
026715256990
Color
White
Grille Material
Polymeric
Housing Material
26 ga Galvanized Steel
Product UPC
02671525699
Weight
7.47 lb

Dimensions

Grille Length
11-3/4 in
Grille Width
12-1/2 in
Height
5-3/4 Inch
Housing Height
5-3/4 in
Housing Length
9-1/4 in
Housing Width
10 in
Length
11-3/4 Inch
Warranty Length
3 yr
Width
12.5 in

Certifications and Compliance

Country of Origin
USA
Features
  • FlexFlow™ technology, select between 50, 80 or 110 CFM
  • Quiet operation at <0.3-0.4-0.9 sones
  • Powerful ventilation reduces humidity to quickly eliminate fogged mirrors and manage moisture, so your vision will always be clear and your surroundings will always be comfortable
  • Retrofit installations can be done entirely from the room-side no attic access required. This means a faster, easier installation, so you can move on to something else
  • Flex DC fans reduce air leakage by up to 50% compared to competitive models, resulting in better home performance via blower door tests and reducing cold and warm air backdrafts
  • Plug in, permanently lubricated, brushless DC motor engineered for continuous operation
  • Can be installed in a wall if mounted 8-ft. or more above the floor
  • UL Listed for use over tubs and showers with a GFCI circuit; so you can capture the steam before it spreads throughout the room by locating your fan exactly where you need it the most
  • ENERGY STAR® certified product
  • Quiet, energy efficient exhaust fan to help control air quality
  • Selectable CFM For flexible installation
  • Easy to install new / replace existing product from the roomside
Includes
  • Non-metallic damper/duct connector
  • Nd an integrated led module
