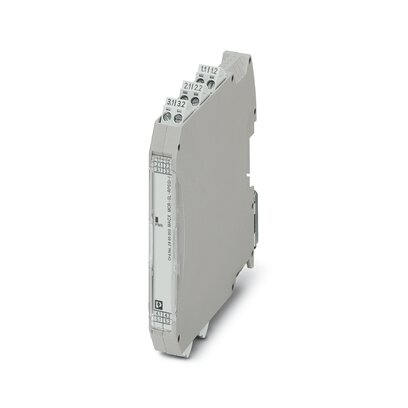

Product image for PHNX 2865955 MACX MCR-SL-RPSSI-I
Image thumbnail 0
Image thumbnail 1
Email

PHNX 2865955 MACX MCR-SL-RPSSI-I

Manufacturer: Phoenix Blocks | Catalog # 2865955 | Echo Electric Part # 175055
$565.35/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Repeater power supply and input signal conditioner, HART-transparent. Transmits supplied or active 0/4 … 20 mA signals to a load (active or passive). 3-way electrical isolation, SIL 2 in accordance with IEC 61508.

Technical Information

Strip Length
7 mm

Manufacturer Information

Brand
Phoenix Products

General Product Info

12-Digit UPC
463564483144
Product UPC
46356448314

Dimensions

Depth
113.7 mm
Height
112.5 mm
Width
12.5 mm

Certifications and Compliance

Country of Origin
Germany
Features
  • Power supply possible via DIN rail connector
  • Up to SIL 2 according to EN 61508
  • Installation in zone 2, protection type \"n\" (EN 60079-15) permitted
  • 3-way electrical isolation
  • Terminal point with 250 ? resistor to increase HART impedance for low-resistance systems
  • Plug-in screw or spring-cage connection technology (Push-in technology), with integrated sockets for HART communicators
  • Bidirectional transmission of digital HART communication signals
  • 0/4 ... 20 mA output (active or passive)
  • 0/4 ... 20 mA input (powered or not powered)
Approvals
  • cULus Listed
  • ATEX
  • EAC Ex
  • Functional Safety
  • DNV GL
  • UL Listed
  • cUL Listed
