Hubbell HBL2531 20A 3PhY 347/600V AC Twist-Lock INSULGRIP Black Nylon Plug, Straight

Manufacturer: Hubbell Wiring Device | Catalog # HBL2531 | Echo Electric Part # 176581
$63.87/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page Installation / Instruction Manual

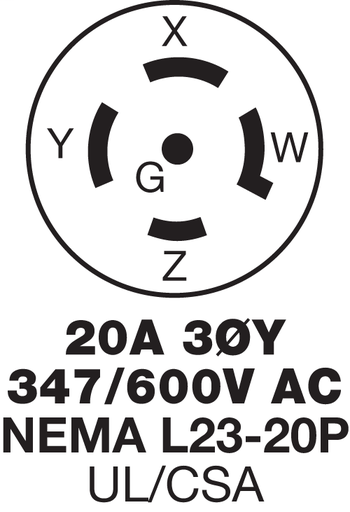

Locking Devices, Twist-Lock®, Industrial, Male Insulgrip® Plug, 20A 3-Phase WYE 347/600V AC, 4-Pole 5-Wire Grounding, NEMA L23-20P, Screw Terminal, Black and White Nylon.

Technical Information

Amperage
20 Amp
Applications
For Extra Heavy Duty Industrial Applications
Conductor Size
16-8 AWG
Cord Size
0.35 - 1.15 in
Cord Type
Portable
Current
20 Amp
Dielectric Strength
2000 V
Grounding
Yes
Material
Nylon
Mounting Type
Surface, Cord
NEMA
L23-20P
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
5 Wire
Operating Temperature
-40 degrees C

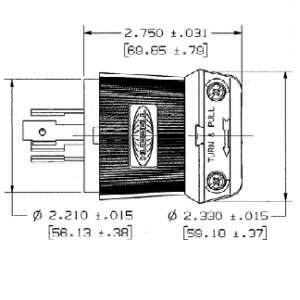

Size
2.33 in x 2.33 in x 2.75 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Terminal Screws
Temperature Rating
-40 to 75 degrees C Continuous
Type
Standard, Non-Shrouded
Voltage
347/600 Volt
Wattage
12000 Watt
Wire Count
5
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Insulgrip®

General Product Info

12-Digit UPC
783585038650
Color
Black,White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means, UL94 HB Flammability
GTiN
00783585038650
Product UPC
78358503865
Weight
0.3 lb

Dimensions

Height
2-3/4 Inch
Length
2.33 Inch
Width
2.33 in

Certifications and Compliance

Country of Origin
USA
Features
  • Superior cord grip design protects terminations from excess strain.
  • Clear, funnel shaped wire entry for ease of termination.
  • Integral dust shield protects wiring chamber from dust or contaminants.
  • Standard Product
