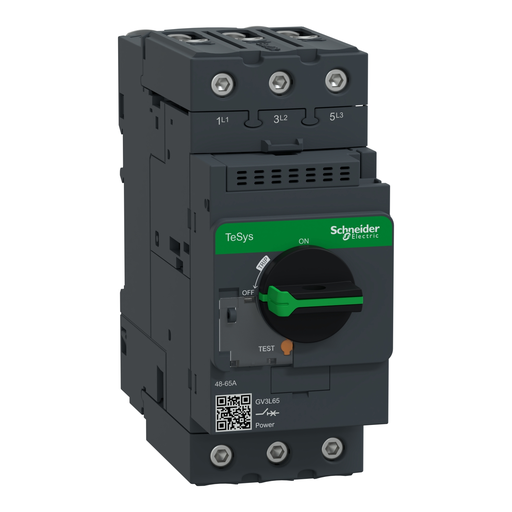

Square D GV3L65 TESYS GV3 MANUAL STARTER

Manufacturer: Square-D / Schneider | Catalog # GV3L65 | Echo Electric Part # 176872
$552.01/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
TeSys GV motor circuit breaker, 3 poles (3P), 65A/690V, for 3-phase motor applications 30kW@400V. It provides a magnetic protection with a tripping level at 14xIn, high breaking capacity Icu 50kA@400V. Connection by Everlink BTR screw terminals. Start-stop control by rotary handle guaranteed for 50 000 cycles AC-3. To complete motor protection, use it in association with a thermal overload relay LRD365 (to be ordered separately). Multi standards certified (IEC, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Technical Information

Control Type
Rotary knob
Line Rated Current
65 A
Net Weight
0.96 kg
Range
TeSys Deca
Standard
CSA C22.2 No 60947-4-1,EN/IEC 60947-2,EN/IEC 60947-4-1,UL 60947-4-1
Storage Temperature
-40-80 degrees C
Trip Point
910-910 A

Manufacturer Information

Brand
Schneider Electric

General Product Info

12-Digit UPC
389119405464
Color
Gray
GTiN
03389119405461
Product UPC
78590113973
Weight
0.96 kg

Dimensions

Depth
136 mm
Height
132 mm
Warranty Length
18 mth
Width
55 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
ABS,BV,CCC,CSA,DNV-GL,EAC,LROS (Lloyds Register Of Shipping),UKCA,UL
Country of Origin
France
Prop 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • GVAE11
  • GVAN11
  • GVAE1
  • GVAE20
  • GVAD1010
  • GVAD0110
  • GVAN20
  • GVAD1001
  • GVAU385
  • GVAS225
  • GVAU225
  • GVAS025
  • GVAD0101
  • GVAM11
  • GV3APN01
  • GV3G264
  • GVAED101
  • GVAU226
  • GVAS385
  • GV2V03
  • GVAU415
  • GVAS226
  • GV3G364
  • GVAPA1
  • GVAU116
  • GV3APN02
  • GVAS026
  • GVAU025
  • GVAU207
  • GVAU115
  • GVAPK12
  • GV3APN04
  • GVAS415
  • GVAS207
  • GVAU505
  • GVAS116
  • GV3APN03
