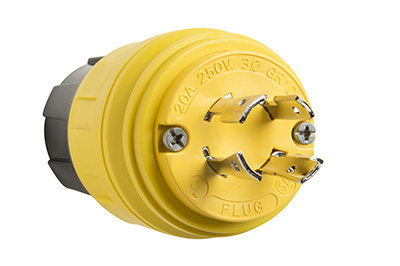

Pass & Seymour 26W75 20A phase 250V L1520P IP67 Turnlok Plug

Manufacturer: Pass & Seymour / Legrand | Catalog # 26W75 | Echo Electric Part # 176897
$96.50/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Buy American Compliant Buy American Compliant Product Spec Sheet
Locking Watertight Plug, 20amp 3 250 volt, NEMA Configuration L15-20, multipoint sealing system provides environmental protection of: NEMA 4, 4X, 6, 6P & IP67 rated.

Technical Information

Amperage
20 Amp
Applications
High-pressure washdowns. Particle build-up. Condensation. Corrosive substances. Food and beverage processing plants can be harsh, challenging environments. Fortunately, we have a full menu of electrical devices that keep things running smoothly while protecting people and equipment. IEC PIN & SLEEVE DEVICES Watertight Plugs & Connectors Thermoplastic elastomer body resists water, oils, lubricants and soaps while maintaining NEMA 4, 4X, 6, 6P, and IP65, 66, 67 ratings Ideal for washdown areas rated watertight for 1,500 PSI high-pressure hose down Nickel-plated blades and contacts for long-lasting, superior corrosion resistance Watertight compression cord grips and a multipoint sealing system between the plug and connector ensures protection from water and contaminants P
Conductor Size
14-10 AWG
Cord Type
14/4 S to 10/4 S, .560" min to .775" max
Material
Rubber
NEMA
L15-20P
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Type
Plug
Voltage
250 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007033557
Color
Yellow
Environmental Conditions
-40 to 60 C
GTiN
00785007033557
Product UPC
78500703355
UNSPSC
39121403

Dimensions

Diameter
2.29 Inch
Height
1.85 Inch
Length
2.62 Inch

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Features
  • Thermoplastic elastomer (TPV) construction stands up to impacts, oils, chemicals, heat , and weather.
  • Nickel-Plated blades and contacts for long lasting, superior corrosion resistance.
  • Multipoint sealing system provides environmental protection of NEMA 4, 4X, 6, 6P, & IP67 rated.
  • Devices resist high-pressure hose down of 1,500 psi.
  • Color coded sealing bushings provided for large range of cord diameters
  • Large ribs on body for a superior grip when mating.
