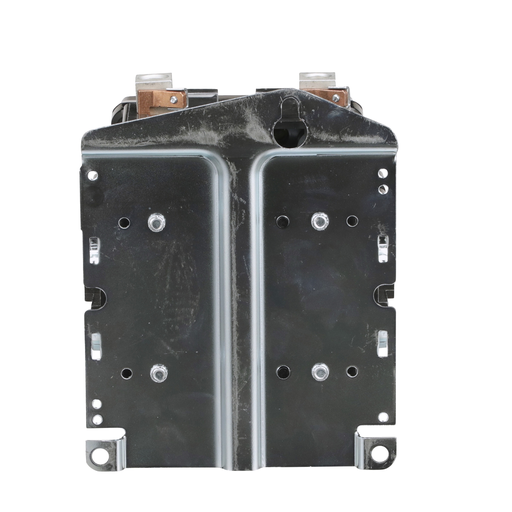

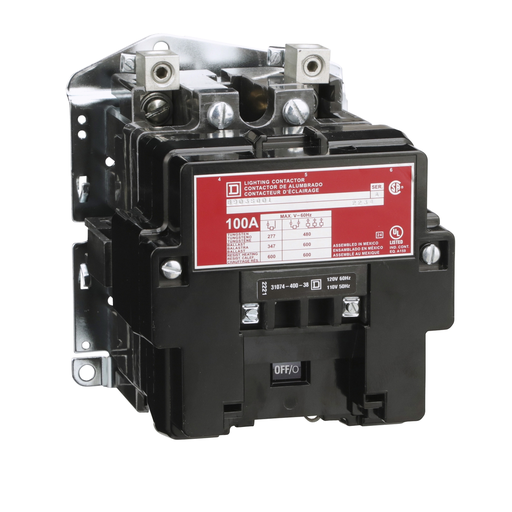

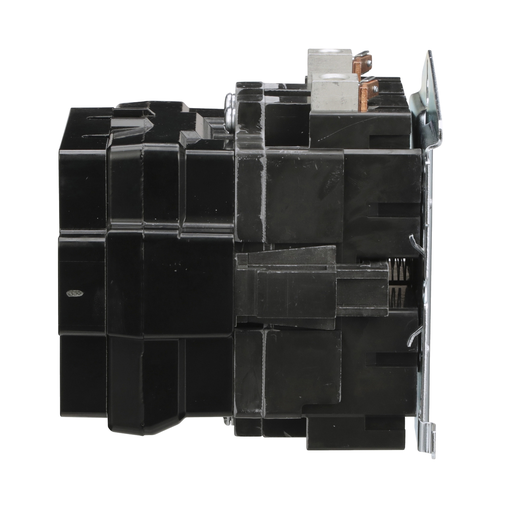

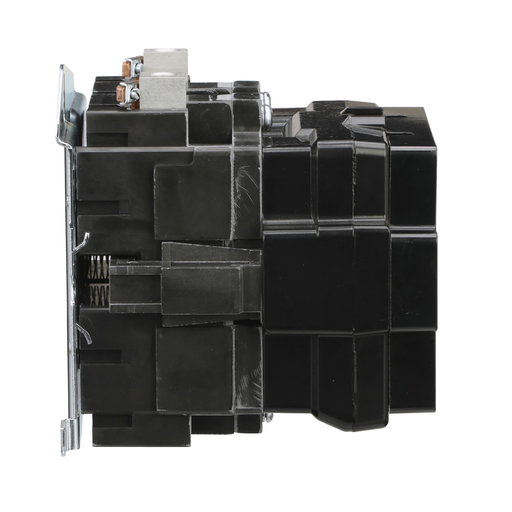

Product image for Square D 8903SQO1V02 110/120 VAC 100 Amp 2-Pole Open Type Electrically Held Lighting Contactor
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Square D 8903SQO1V02 110/120 VAC 100 Amp 2-Pole Open Type Electrically Held Lighting Contactor

Manufacturer: Square-D / Schneider | Catalog # 8903SQO1V02 | Echo Electric Part # 177651
$1,533.77/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page
8903S lighting contactors are for lighting control applications. 8903S lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. This contactor is designed to switch 100 amperes. This device 2 pole device has 2 NO contacts. Supplied with a 110/120 VAC 50/60 Hz interchangeable operating coil but other coils are available in a wide variety of common voltages up to 600VAC. Contactor is an open device. A variety of enclosure types are available. Coil and contacts are easily replaced. Lighting contactor is 7.26 inches tall, 5.45 inches wide and 6.50 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.

Technical Information

Applications
ELECTRICALLY HELD
Coil Voltage
120@60Hz/110@50Hz VAC
Contact Configuration
Without
Contact Rating
100 A
Current
100 Amp
Indicator
WITHOUT PILOT LIGHT
Line Rated Current
100 A
Number of Poles
2 Pole
Size
6.50 in
TC Connection
Lugs
Type
Electrically Held Lighting Contactor

Manufacturer Information

Brand
Square D
Sub Brand
S

General Product Info

12-Digit UPC
785901625964
GTiN
00785901625964
Product UPC
78590162596

Dimensions

Depth
165 mm
Height
184 mm
Warranty Length
18 mth
Width
138 mm

Certifications and Compliance

Certifications
CSA,UL Listed
Country of Origin
Mexico
Compatible Products
  • 9999SX6
  • 9999SX7
  • 9999SX8
