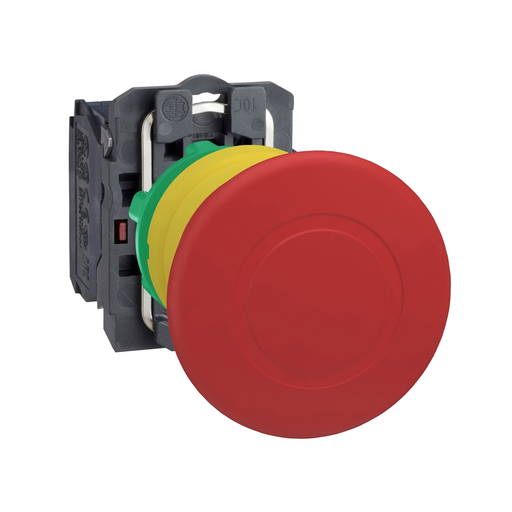

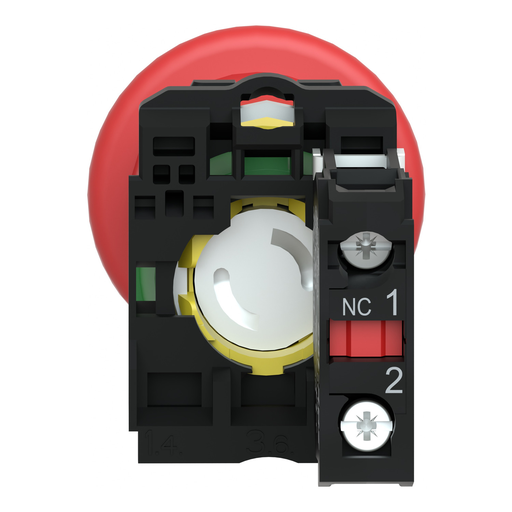

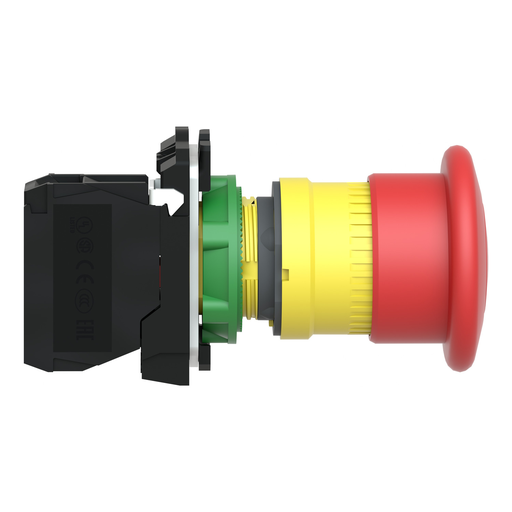

Product image for Square D XB5AT842 22 mm 600 VAC 1.2 Amp 1NC Round Trigger Action Push-Pull Non-Illuminated Push Button
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Square D XB5AT842 22 mm 600 VAC 1.2 Amp 1NC Round Trigger Action Push-Pull Non-Illuminated Push Button

Manufacturer: Square-D / Schneider | Catalog # XB5AT842 | Echo Electric Part # 178208
$119.38/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This Harmony XB5, emergency stop / shutdown 40mm mushroom head modular red push button operates with a latched push-pull mechanism and uses screw-clamp terminals. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off) is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Technical Information

Action
SLOW-BREAK
Actuator
LATCHING,RED MUSHROOM Ø 40 MM, UNMARKED
Amperage
3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Bezel Material
Plastic
Contact Configuration
1 NC
Contact Material
Silver Alloy
Enclosure
NEMA 13-NEMA 4X
Head Type
Standard
Net Weight
0.065 kg
Operating Temperature
-40-70 Adegrees C
Size
22 MM,40 MM,43 MM,82 MM
Standard
CSA C22.2 No 14,IEC 60204-1,IEC 60364-5-53,IEC 60947-1,IEC 60947-5-1,IEC 60947-5-4,IEC 60947-5-5,ISO 13850,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA WITH CABLE END EN 60947-1-SCREW CLAMP TERMINALS, >= 1 X 0.22 MMA WITHOUT CABLE END EN 60947-1
Type
EMERGENCY STOP PUSH-BUTTON-EMERGENCY SWITCHING OFF PUSH-BUTTON

Manufacturer Information

Brand
Schneider Electric
Sub Brand
XB5

General Product Info

12-Digit UPC
606480623687
Color
Red
GTiN
03606480623684
Product UPC
78590198052
Weight
0.065 kg

Dimensions

Depth
82 mm
Height
43 mm
Width
40 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
BV,CSA,DNV,GL,LROS (Lloyds Register Of Shipping),UL Listed
Country of Origin
Czechia
Prop 65
  • WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • ZBY9320
  • ZB5AZ905
Spare Part Products
  • ZB5AZ102
  • ZB5AT84
