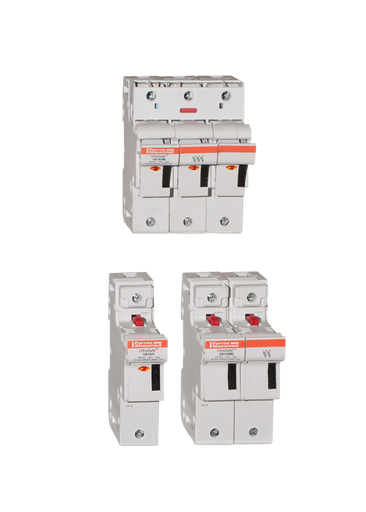

Product image for Ferraz Shawmut US141I 14 x 51 mm 1-Pole 50 Amp 750 Volt Fuse Holder
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Ferraz Shawmut US141I 14 x 51 mm 1-Pole 50 Amp 750 Volt Fuse Holder

Manufacturer: Ferraz Shawmut | Catalog # US141I | Echo Electric Part # 178359
$114.02/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
The innovative and comprehensive UltraSafe range of Mersen fuse-holders. Modular fuse-holders are finger-safe under IEC standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). Modular fuse-holders are available in 1, 2, 3 or 4 poles, with or without visual blown fuse indicator, in UL + IEC version. Multi-pole units can also be field assembled by ordering pin-ties assembly kit. In this size, the range also offers the possibility to use microswitches (supplied with the holders or ordered separately) to allow remote indication. UltraSafe range is made of tough and durable thermoplastic or thermoset material.

Technical Information

Amperage
50 Amp
Applications
All circuits up to 750V requiring semiconductor fuses for protection of small inverters, UPS systems, motor drives, etc
Frequency
50 Hz
Fuse Interrupt Rating
50 A
Indicator
Visual Indicator
Insulation Material
Polyamide
Max Operating Temperature
60 degrees C
Min Operating Temperature
-25 degrees C
Mounting Type
DIN Rail Acc. EN 60716
Number of Poles
1-4 Pole
Rated Insulation Voltage
690 V
Rated Voltage AC
800 V
Rated Voltage DC
1000 V
Short Circuit Current Ratng
100000 A
TC Connection
Pressure Plate
Terminal Material
Tin-Plated Copper
Terminal Type
Clip
Torque
30.98 lb-in
Torque Rating
30.98 lb-in
Type
UltraSafe
Voltage
750 Volt

Packaging

Pkg Qty
6

Manufacturer Information

Brand
Ferraz Shawmut Canada, Inc.

General Product Info

12-Digit UPC
782001310967
GTiN
00782001310967
Product UPC
78200131096
Weight
0.316 lb

Dimensions

Height
4.36 Inch
Length
3.01 Inch
Width
1.04 in

Certifications and Compliance

Country of Origin
Tunisia
Features
  • Sealable in closed and open position
  • Lockable
  • Flame retardant materials with glow wire flammability index to 960°C
  • Optional visual blown fuse indicator & microswitch
  • Modular design
  • Plastic material UL94V2 mini
  • DIN rail mounting
  • Finger safe
  • Degree of protection: IP20
  • Multi-pole assembly kit available
