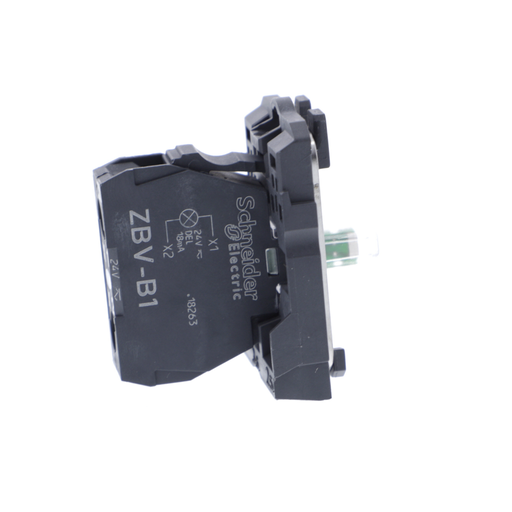

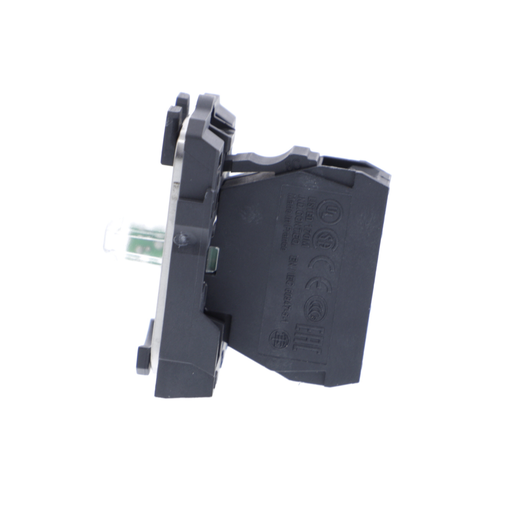

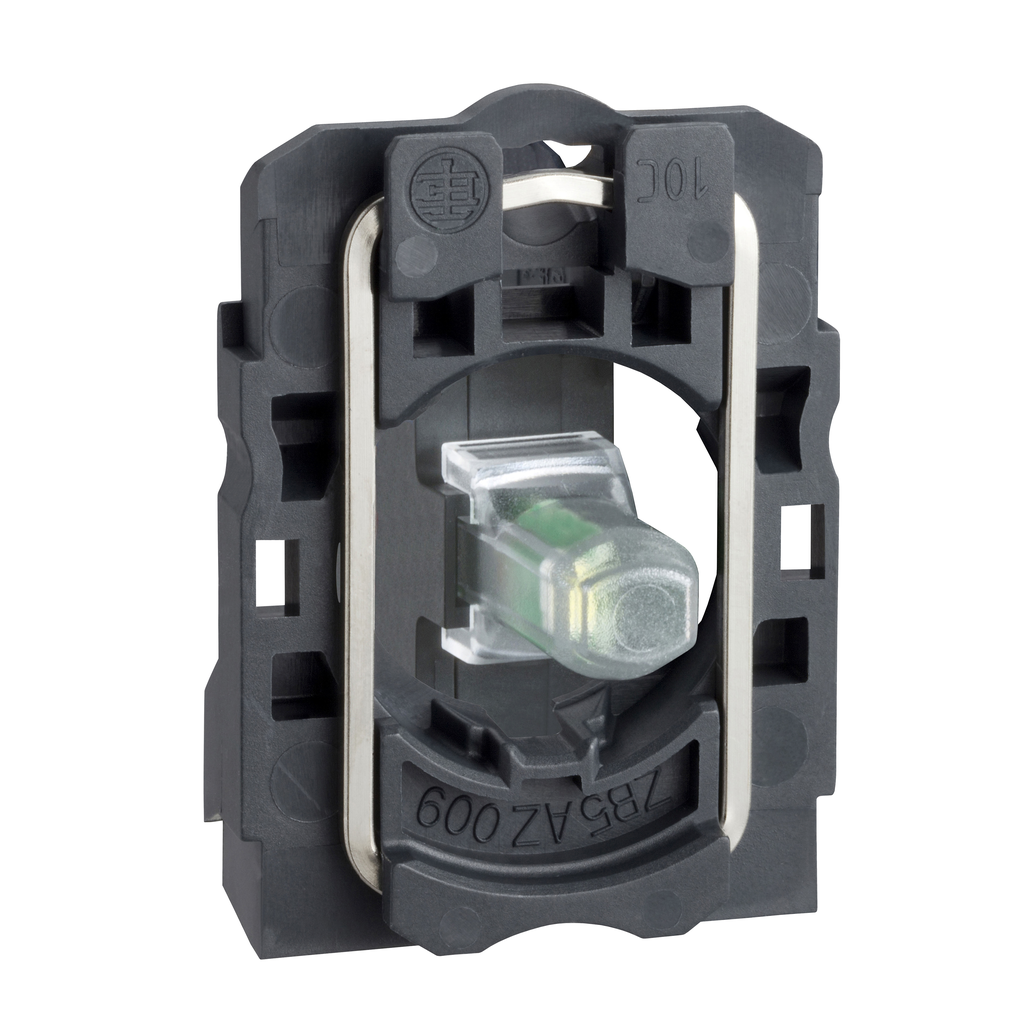

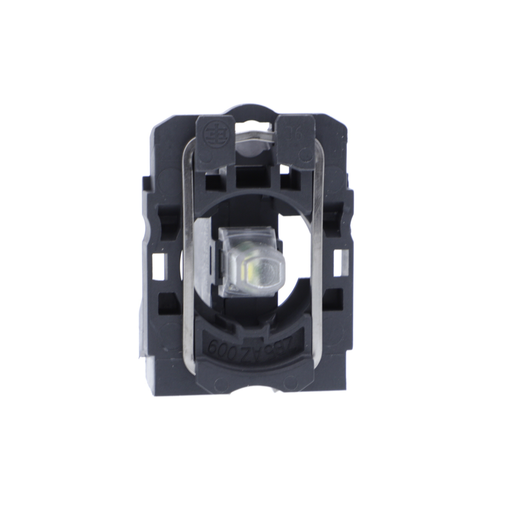

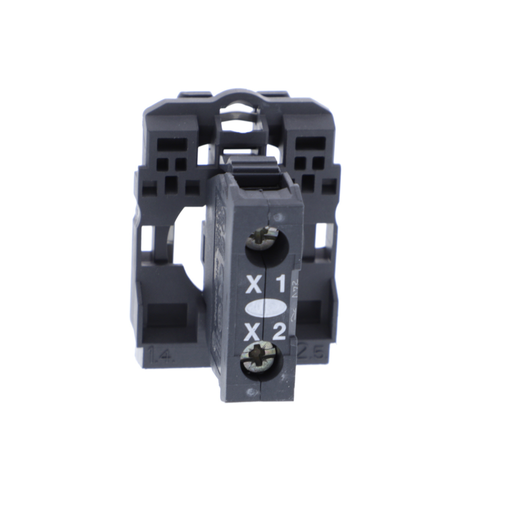

Product image for SQUARED ZB5AVM3 Light block with bo
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

SQUARED ZB5AVM3 Light block with bo

Manufacturer: Square-D / Schneider | Catalog # ZB5AVM3 | Echo Electric Part # 179697
$73.42/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units . It is assembled via clips and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.

Technical Information

Current
14 mA
Indicator
GREEN,INTEGRAL LED,PROTECTED LED
Light Source
Protected LED
Net Weight
0.022 kg
Operating Temperature
-40-70 Adegrees C
Size
30 MM,32 MM,42 MM
Standard
CSA C22.2 No 14,EN/IEC 60947-1,EN/IEC 60947-5-1,EN/IEC 60947-5-4,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA WITH CABLE END EN 60947-1-SCREW CLAMP TERMINALS, >= 1 X 0.22 MMA WITHOUT CABLE END EN 60947-1
Type
COMPLETE BODY/LIGHT BLOCK ASSEMBLY
Voltage
230...240 Volt AC 50/60 HZ

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ZB5

General Product Info

12-Digit UPC
785901682059
GTiN
03389110907971
Product UPC
78590168205
Weight
0.05 lb

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
BV,CSA,DNV,GL,LROS (Lloyds Register Of Shipping),UL Listed
Country of Origin
France
