Hubbell HBL2625SW 30 Amp 250 Volt 2-Pole 3-Wire NEMA L6-30P Gray Watertight Locking Flanged Inlet

Manufacturer: Hubbell Wiring Device | Catalog # HBL2625SW | Echo Electric Part # 180136
$182.83/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Watertight Safety-Shroud® Flanged Inlet, 30A, 250V AC, 2 Pole, 3 Wire Grounding, NEMA L6-30P, Gray Valox® housing and flange

Technical Information

Amperage
30 Amp
Applications
Extra Heavy Duty Industrial
Conductor Size
12-8 AWG
Connection Type
Screw Terminal
Current
30 Amp
Dielectric Strength
Withstands 2,000V minimum
Material
Composite

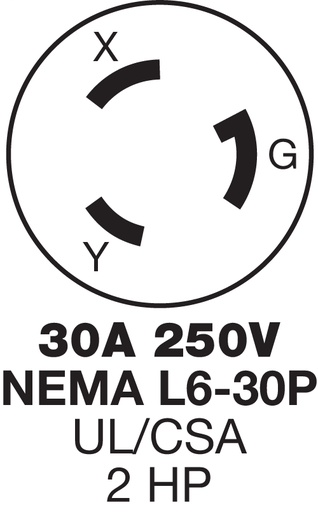

NEMA
L6-30P
Number of Conductors
3
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Ports
2
Number of Wires
3,3
Operating Temperature
-40 degrees C
Size
Standard Sized
TC Connection
Screw Terminals
Type
Standard, Single, Watertight
Voltage
250 Volt
Wattage
7500 Watt
Wire Count
3
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Safety-Shroud®

General Product Info

12-Digit UPC
783585231723
Color
Gray and White
Environmental Conditions
Watertight
GTiN
00783585231723
Product UPC
78358523172
Weight
0.60 lb

Dimensions

Height
2.27 Inch
Length
3-3/4 Inch
Width
3.75 in

Certifications and Compliance

Country of Origin
USA
Features
  • One-piece, engineered thermoplastic housing is impact-resistant for heavy-duty industrial environments
  • Alignment arrows and lock and unlock symbols provide a visual indication that devices are properly connected.
  • Closure cap is included for environmental seal when device is not in use
  • Catalog number and color-coded voltage rating are easily visible even when in use
  • Shrouded Watertight Construction
